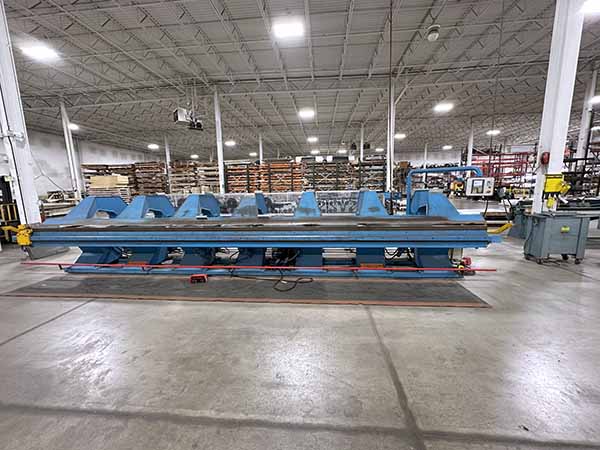

Jorns Maxi Line 150 2000

machine specification

• MACHINE DIMENSIONS (L X W X H)
• 344.8" x 62.2" x 73.62"

• WORKING LENGTH
• 314.96"

• INSERTION DEPTH
• 39.37"

• SHEET THICKNESS STEEL PLATE
• 0.05"

• SHEET THICKNESS RUST-FREE STEEL PLATE
• 0.039"

• SHEET THICKNESS ALUMINUM
• 0.098"

• WEIGHT
• 12,345 lbs

• HYDRAULIC UNIT FEED RATE/OUTPUT
• 32lt./min

• HYDRAULIC UNIT WORKING PRESSURE
• 200 bar

• HYDRAULIC UNIT PERFORMANCE
• 8.45 Hp/6.3kW

• HYDRAULIC UNIT TANK CAPACITY
• 100 lt

• UPPER BEAM OPENING STROKE
• 7.87"

• UPPER BEAM CLAMP FORCE
• 9,442 lbf./42 kN

• FOLDING BEAM BENDING ANGLE
• 140 Degrees

• STOP FEED SPEED
• 55.75ft per min

• STOP DEPTH (MIN.)
• 0.098"

• STOP DEPTH (MAX.)
• 39.3"

• CLAWS FEED SPEED
• 3.28ft/s

• CLAWS CUTTING PERFORMANCE
• 0.059"

• UPPER BEAM SETTING PLATE THICKNESS (MIN.)
• 0.02"

• UPPER BEAM SETTING PLATE THICKNESS (MAX.)
• 0.098"

machine description

Used Jorns Maxi Line 150. This pre-owned Folding Machine is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Jorns Folding Machine we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
