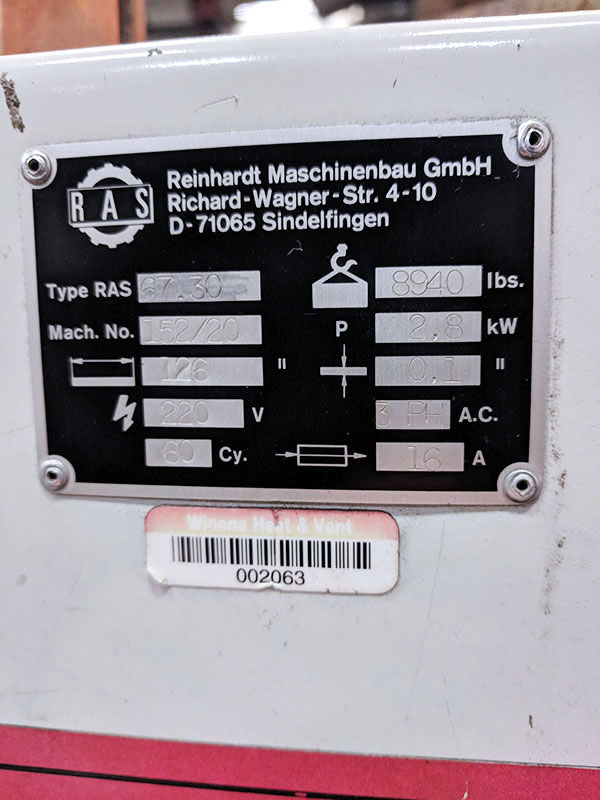

RAS 67.30 1994

machine specification

• TURRET CAPACITY
• 8 Positions

• TOOL CHANGER TYPE
• 60 ATC

• THROAT DEPTH
• 9.45"

• TABLE SIZE - W
• 30"

• TABLE SIZE - L
• 61"

• PALLET SIZE (INCHES)
• 25"

• BAR STOCK CAPACITY
• 2.0"

• MAX SWING (INCHES)
• 17.32"

• SPINDLE MOTOR (HP)
• 3.7 HP

• SPINDLE SPEED
• 12,000 RPM

• SPINDLE TAPER (CAT/BT)
• HSK-463

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• CHUCK SIZE (INCHES)
• 8"

• WIDTH OF BED
• 126"

• THICKNESS CAPACITY
• 12 Gauge

• INNER BEND RADIUS
• 1.25" X Thickness Minimum

• INSIDE FLANGE HEIGHT
• 6" X Thickness Minimum

• UPPER BEAM OPEN HEIGHT
• 11.81"

• CNC FOLDING BEAM ADJUSTMENT RANGE
• 3.15"

• CNC LOWER BEAM FLOODING RANGE
• 3.15"

• OPENING WIDTH OF THE UPPER CHEEK
• 7.87" Maximum

• SPEED UPPER BEAM DOWNSTROKE
• 1.57" / Second Maximum

• SPEED UPPER BEAM UPSTROKE
• 3.6" / Second Maximum

• SPEED FOLDING
• 74 Degrees Per Second

machine equipped with

• BACK GAUGE
