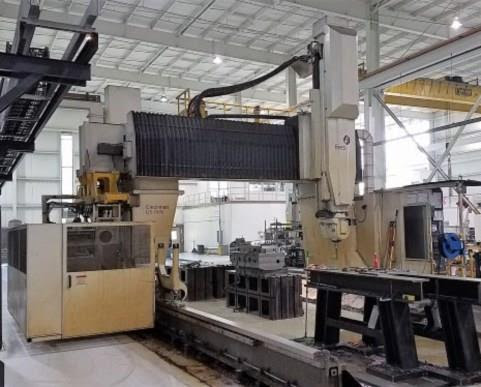

Cincinnati MAG U5-1500 Gantry 2007

machine specifications

• V-Axis Travel:

  5555

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Distance Between Columns:

  199"

• Distance Across Ways:

  213.2"

• Length of Rails:

  1296"

• Number of Work Plates:

  16

• Work Plate Width (Each):

  120"

• Work Plate Size:

  120" x 72"

• Overall Work Plate Length:

  1184.1"

• Ram Cross Section:

  20" X 20"

• Spindle Speed:

  12,000 RPM

• Spindle Speeds:

  Right Angle Head to 6000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Rotation:

  Programmable Bi-Directional

• Speed Steps:

  1 RPM Increments

• Spindle Taper (5-AXIS GIMBAL HEAD):

  No 50 Big Plus

• Spindle Speeds:

  6000 RPM

• A-Axis:

  +100 Degrees/-90 Degrees

• C-Axis: 360:

  Degrees

• Power:

  40 HP (Continuous Duty)

• Distance, Ram Face to Pivot Poin:

  18.78"
