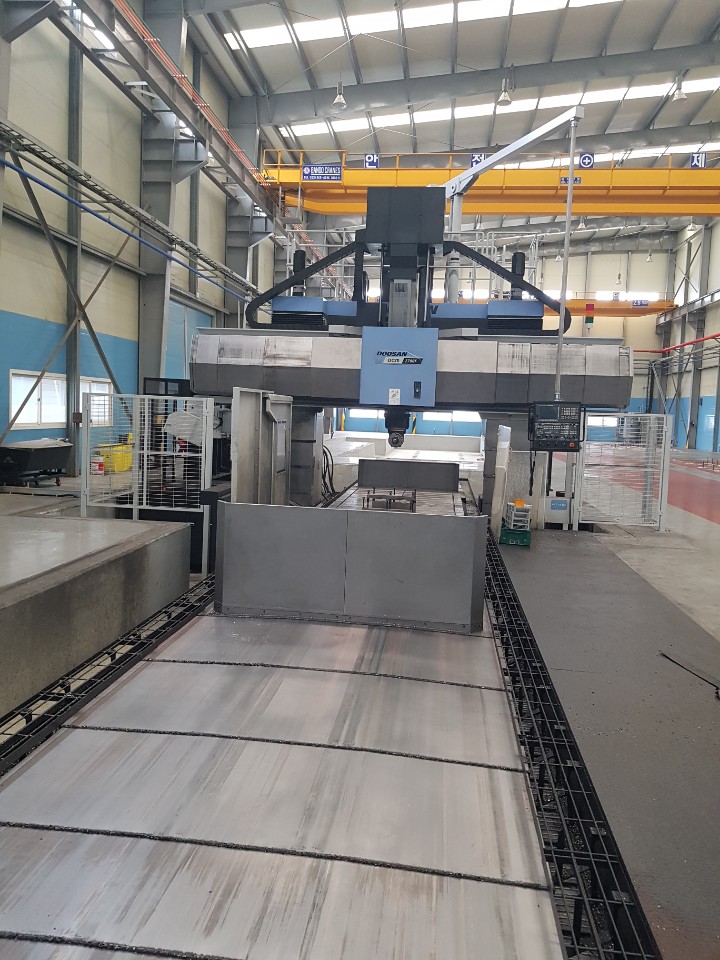

Doosan DCM2780F 2017

machine specifications

• Table Size - W:

  30"

• Chip To Chip Time:

  (Vert/Horiz) 55/47 sec

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Tool to Tool Time:

  (Vert/Horiz) 5.5/6.0 sec

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Max Tool Dia w/o Adjacent Tool:

  9.8"

• Chuck Size (Inches):

  8"

• Table Size:

  240.2" x 86.6"

• Table Capacity:

  88,200 lb

• Distance from Spindle Nose to Table:

  65"

• X- Axis Travel:

  324.8"

• X Axis Rapid Traverse:

  630 IPM

• Y-Axis rapid traverse:

  787 ipm

• Z-Axis Rapid Traverse:

  590 ipm

• Cutting Feedrate:

  1- 24,000 mm/min / 1- 944"

• Spindle RPM:

  4,000 RPM

• spindle power:

  50 hp

• Spindle Torque:

  1,257 ft-lb

• Number of Tool:

  40

• Spindle Taper:

  CAT 40 (Big Plus)

• Max Tool Length:

  15.7"

• Max Tool Weight:

  22 lbs.

• Max Tool Diameter:

  2.9"

• Y-Axis Travel:

  27.6"

• Z-Axis Travel:

  43.5"

• W-Axis Travel:

  (option) 43.3" (57")

• Ram size:

  15"x15"

• Power Transmission Type:

  Gear Box
