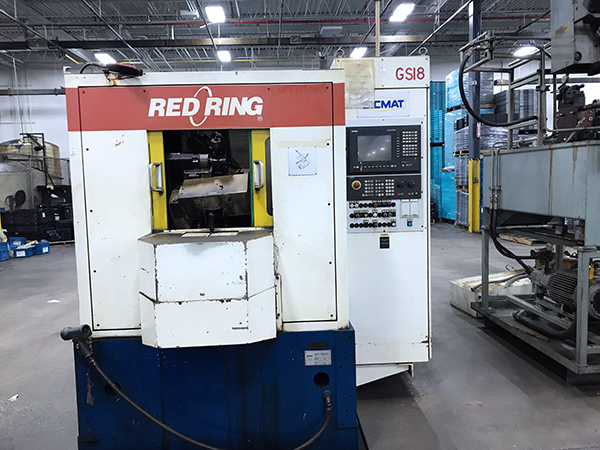

Redring Raso 200 A6 2002

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Table Size - L:

  61"

• Min./max distance btwn shaving cutter & workpiece axes (standard tailstocks height):

  110 / 202 mm

• Min./Max. diameter of shaving cutter:

  178 / 245 mm

• Shaving cutter bore diameter:

  63, 5 mm (100)

• Min./max. shaving cutter width (standard):

  19 / 50,8 mm

• Max. face to be shaved (standard):

  96 mm

• Table oscillation:

  ±1,7°

• RADIAL AXIS Rapid positioning speed:

  250 mm/min

• RADIAL AXIS Working feed:

  0,1 / 4 mm/min

• Radial Axis Stroke:

  92 mm

• TAPER & CROWN AXIS Speed:

  61 deg/min

• TAPER & CROWN AXIS Stroke:

  ± 1,7°

• LEAD AXIS Speed:

  720 mm/min

• LEAD AXIS Stroke:

  -25 / 4-+45 mm

• TRANSVERSE AXIS Speed Stroke ±8mm:

  500 mm/min

• TRANSVERSE AXIS Stroke:

  ±8mm

• PARALELL AXIS Speed:

  500 mm/min

• PARALELL AXIS Stroke:

  ±30mm

• Shaving Cutter Spindle Speed:

  400 RPM

• Read more
