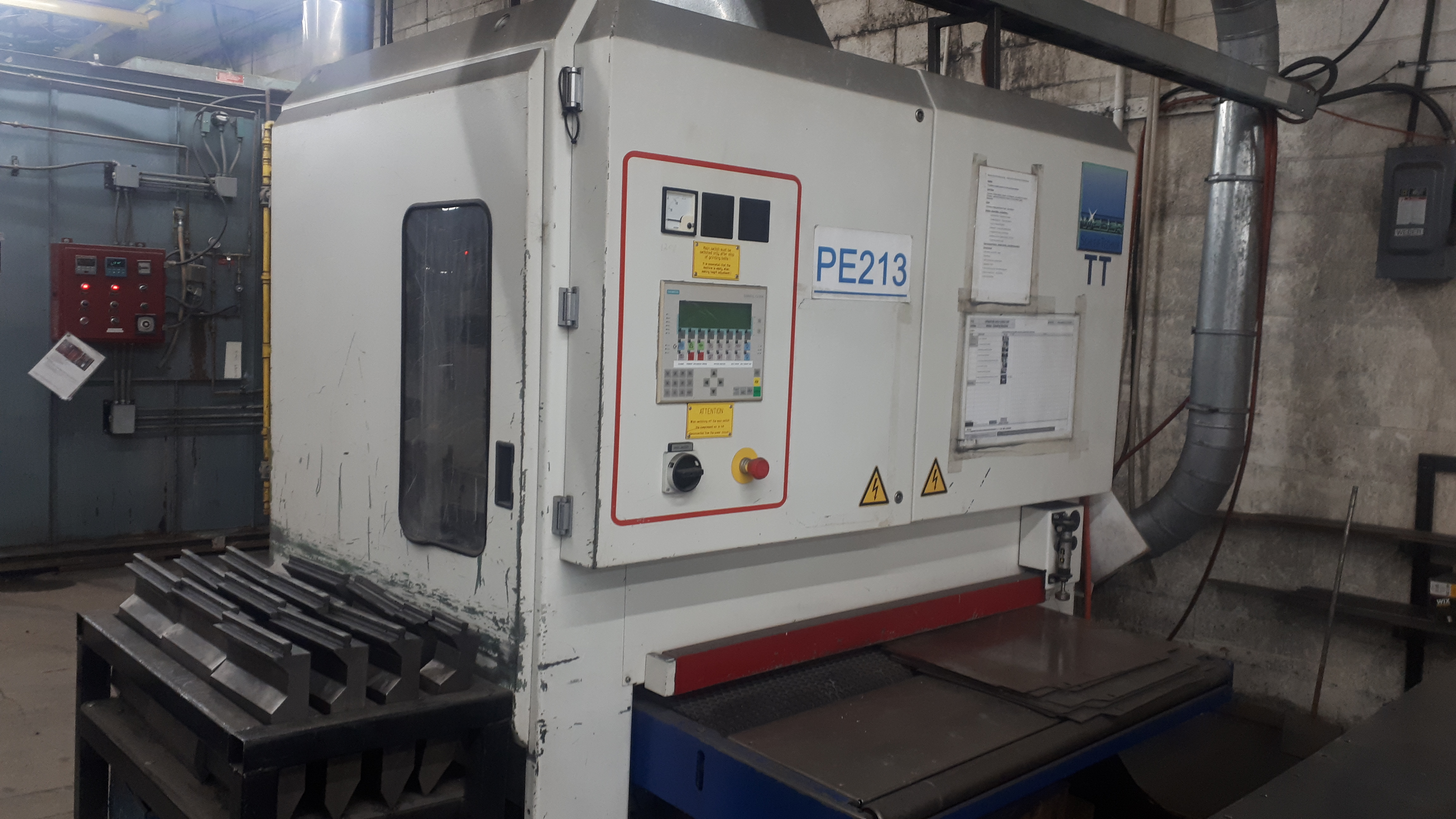

Weber TT-1P-1100 2005

machine specifications

• Max Workpiece Thickness:

  140mm/ 5.5"

• Feed:

  1.3 kW

• Operating Height:

  900mm/ 35.4"

• Operating Width:

  1100mm / 43.3"

• Min. Workpiece thickness:

  8mm / 0.3"

• Spatial Requirement Belt Change:

  Approx. 1600 mm / 62.99"

• Plant Weight:

  approx. 2100 kg / 4629 lbs

• Plant Width:

  approx. 1710 mm / 67.3"

• Plant Length:

  2200 mm / 86.6"

• Plant Height:

  approx. 2090 mm / 82.2"

• Contact drum:

  1.1 kW

• Disc unit:

  1.1 kW

• Vacuum:

  2.2 kW

• Height adjustment for table:

  0.25 kW

• Height adjustment for disc head:

  0.18 kW

• Grinding Belt Speed:

  approx. 14 m/sec

• Grinding Belt Dimension:

  1120 x 1900 mm / 44" x 74.8"

• Conveyor Belt Speed:

  1-10 m/min

• Conveyor Belt Dimension:

  1100 x 3000 mm / 43.3" x 118.1"

• Connected Value:

  22 kW

• Operating Voltage:

  3 x 460 Volt

• Control Voltage:

  24 Volt DC

• Frequency:

  60 Hz

• Supply Line Fuse:

  60 A

• Supply Line Cross Section:

  10 mm^2

• Compressed Air Connection:

  6-7 bar

• Socket Diameter:

  1x180, 1x160, 1x120 mm

• Exhausting Air Quantity: approx:

  4130 m^3/h
