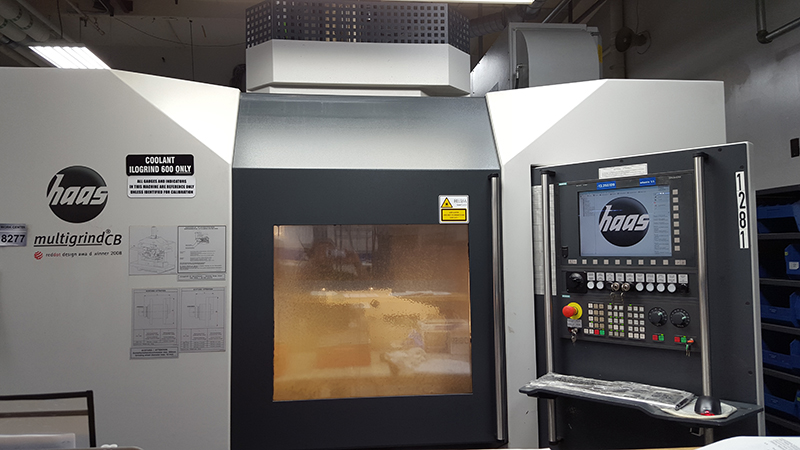

Haas Multigrind CB 2014

machine specifications

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Diameter:

  13.38” (340 mm)

• Length:

  21.65 (550 mm)

• Length between the tips:

  19.68” (500 mm)

• X-axis:

  27.6” (700 mm)

• Y-Axis:

  33.5” (850 mm)

• Z-axis:

  19.68” (500 mm)

• C-Axis:

  19.68 (500 mm)

• X3 Auxiliary Axis (optional):

  13.8” (350 mm)

• A-axis SK 50, n:

  1000 RPM

• Table Size:

  39.4” x 19.68” x 2.36” (1000 x 500 x 60)

• Cone Interface:

  Ø 1.25” (31.75 mm)

• Rated power:

  100 % / 40 % ED 11.5 / 14.5 kW

• Rotation Speed:

  Standard 8,000 1/min

• Interface:

  HSK 80 E

• Rotation Speed:

  SHIFTED 12000 RPM 30KVW

• Machine table Clamping surface:

  39.4” x 19.68” (1,000 x 500 mm)

• T-Slot Number:

  9

• T-Slot Spacing:

  1.96” (50 mm)

• T-Slot Width:

  5” (127mm)

• Tools: Quantity / Ø:

  0.28”/11.81” bis .63” / 3.93” (7/300 mm bis 16/100 mm)

• Tools: Quantity / Ø:

  0.47”/11.81” bis 1.06”/3.93” (12/300 mm bis 27/100 mm)

• Read more
