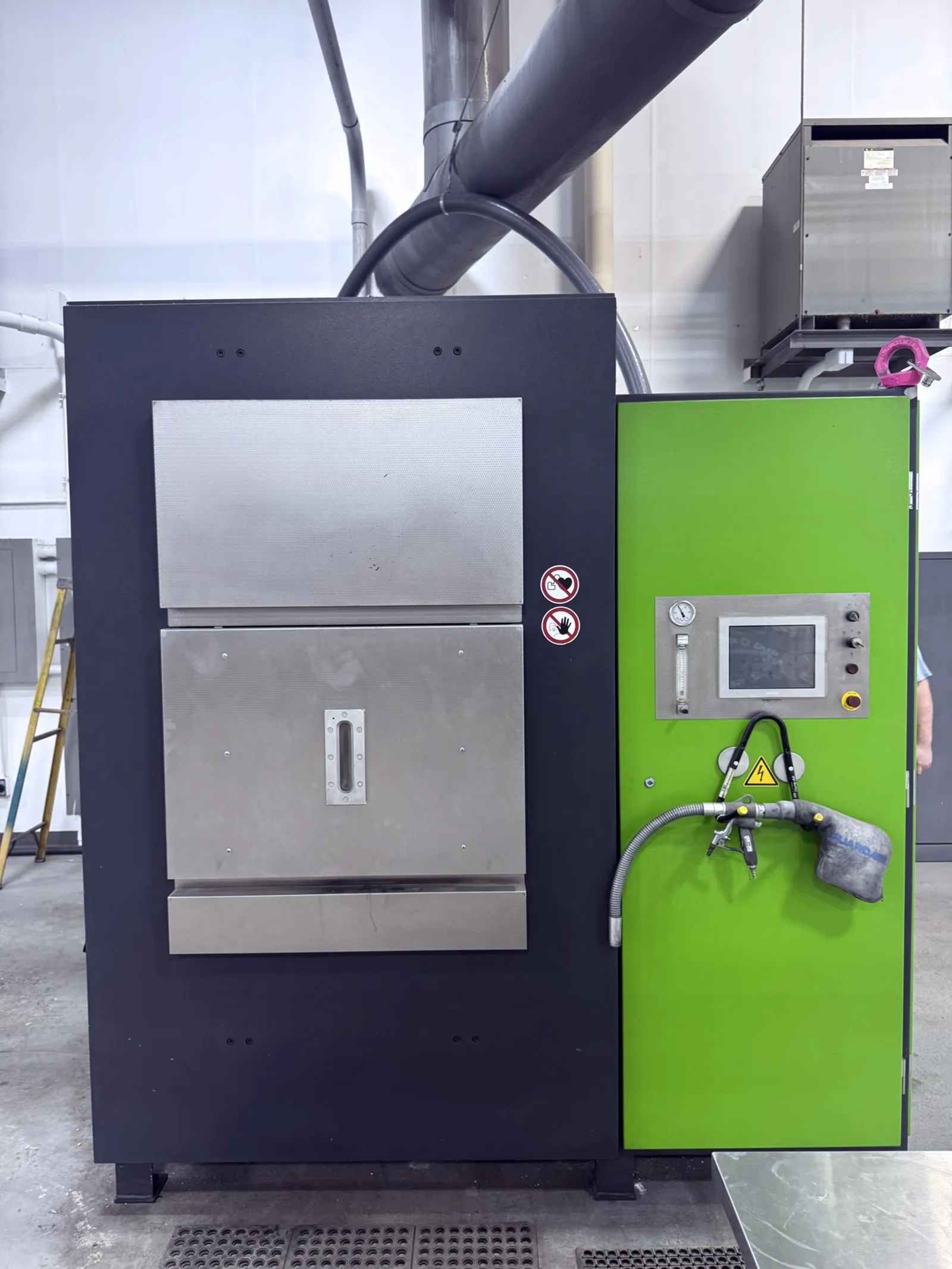

Dr. Fritsch DSP 517 2020

machine specifications

• Core Sintering Specifications:

• Pressing Force:

  67.7 Tons nominal (with N/D switching options ranging from 4.38 to 51.82 Tons or 5.73 to 67.7 Tons).

• Temperature Range:

  0 – 2,192°F (Standard thermocouple range).

• Graphite Electrode Dimensions:

  13.78″ x 13.78″ x 3.149″.

• Electrode Opening Height:

  2.95″ minimum to 8.85″ maximum.

• Effective Cylinder Pressing Area:

  23.85 sq. in.

• Fluid & Gas Consumption:

• Cooling Water Consumption:

  Approximately 58.12 gal/min.

• Cooling Water Supply Temperature:

  64.4°F – 71.6°F.

• Cooling Water Pressure:

  29 – 58 psi (Differential pressure: 14.5 – 29 psi).

• Compressed air consumption:

  Approximately 5.28 gal/min at 58 – 87 psi.

• Inert Gas Consumption:

  79.25 – 264.17 gal/min at 14.5 – 72.52 psi.

• Electrical Requirements:

• Total Electric Power:

  Approximately 250 kVA.

• Maximum Heating Power:

  205 kVA (standard) or up to 240 kVA (optional).

• Supply voltage:

  3 x 400V, 50/60Hz
