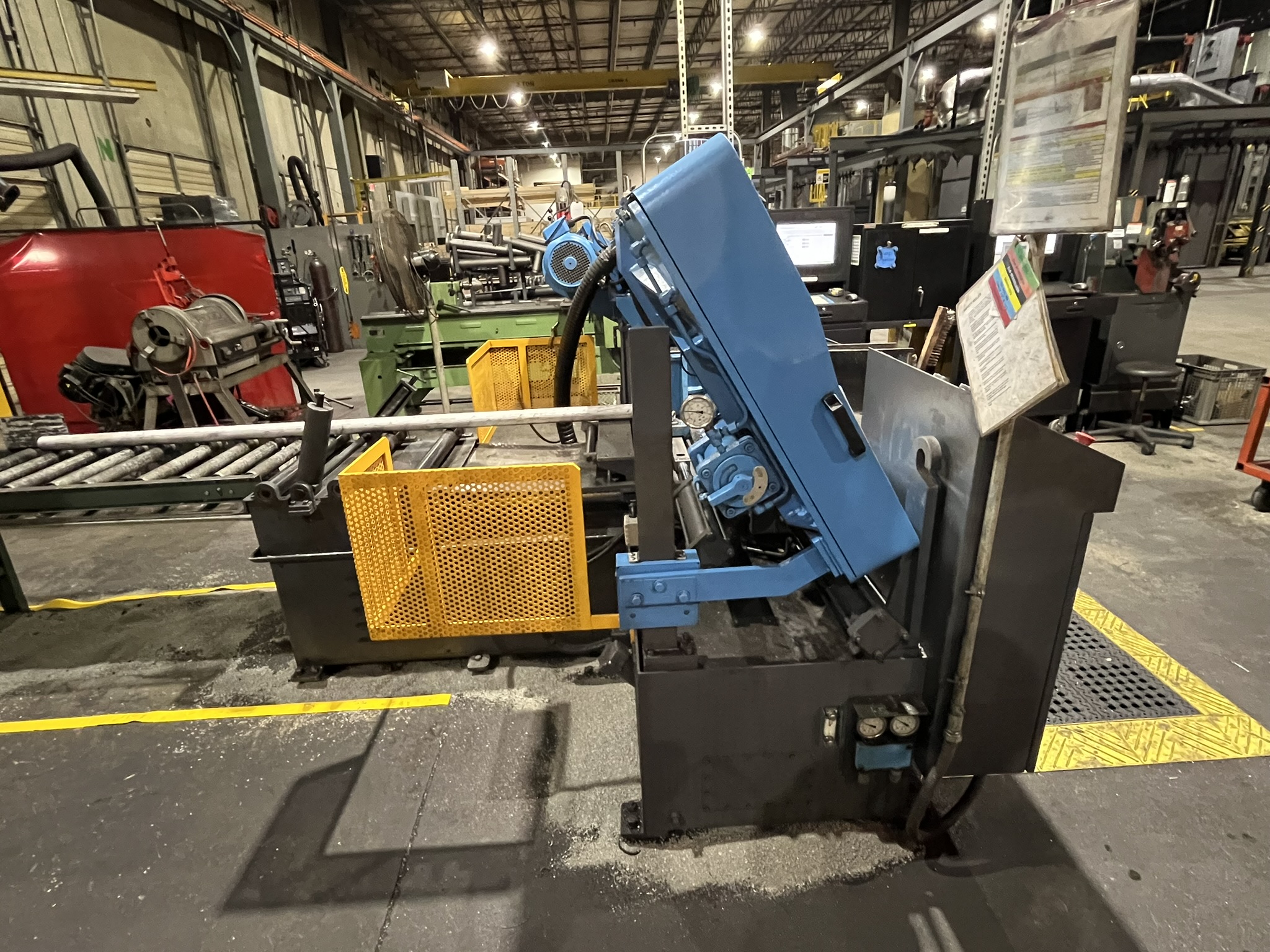

DOALL DC-460NC 2018

machine specification

• CUTTING CAPACITY (ROUND)
• 18"

• CUTTING CAPACITY (RECTANGLE)
• 20" x 18"

• BUNDLE CAPACITY MAXIMUM (WXH)
• 18.88" x 9.75"

• BUNDLE CAPACITY MINIMUM (WXH)
• 9.38" x 3-1/4"

• BANDSAW BLADE SIZE
• 209" x 1-1/2" x 0.05"

• WIDTH X LENGTH
• 1.5"x 209"

• BAND DRIVE
• ---

• MOTOR HP
• 10 Hp

• BAND SPEED
• 52-430 fpm

• BAND TENSION
• Hydraulic

• HYDRAULIC SYSTEM
• --

• MOTOR HP
• 2 HP

• RESERVOIR SIZE
• 22 Gallon

• COOLANT SYSTEM TYPE
• Flood Coolant

• MOTOR HP
• 1/4 Hp

• RESERVOIR SIZE
• 29 gallon

• INDEXER
• ---

• LENGTH PER STROKE
• 19.68"

• MAXIMUM INDEX STROKES LENGTH
• 177"

• MAXIMUM INDEX LENGTH
• 177"

• REMNANT LENGTH
• 7.875" ( Non-Bundle)

• FLOOR SPACE (L X W X H)
• 102" x 89" x 71"

• MATERIAL PASS LINE HEIGHT
• 29.5"

• MACHINE WEIGHT
• 6284 lbs

• VOLTAGE REQUIRED
• 230V-60Hz-3ph, Wye configuration

• TOTAL AMP DRAW (FLA)
• 33 Amps

machine equipped with

• PLC CONTROL
• HYDRAULIC RETRACTABLE SHUTTLE VISE MATERIAL INDEXER
• VISE PRESSURE CONTROL
• AUTOMATIC CHIP CONVEYOR
• COOLANT
• CONVEYOR
• BOOKS AND MANUALS

machine description

Used DOALL DC-460NC. This pre-owned Horizontal Band Saw is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this DOALL Horizontal Band Saw we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
