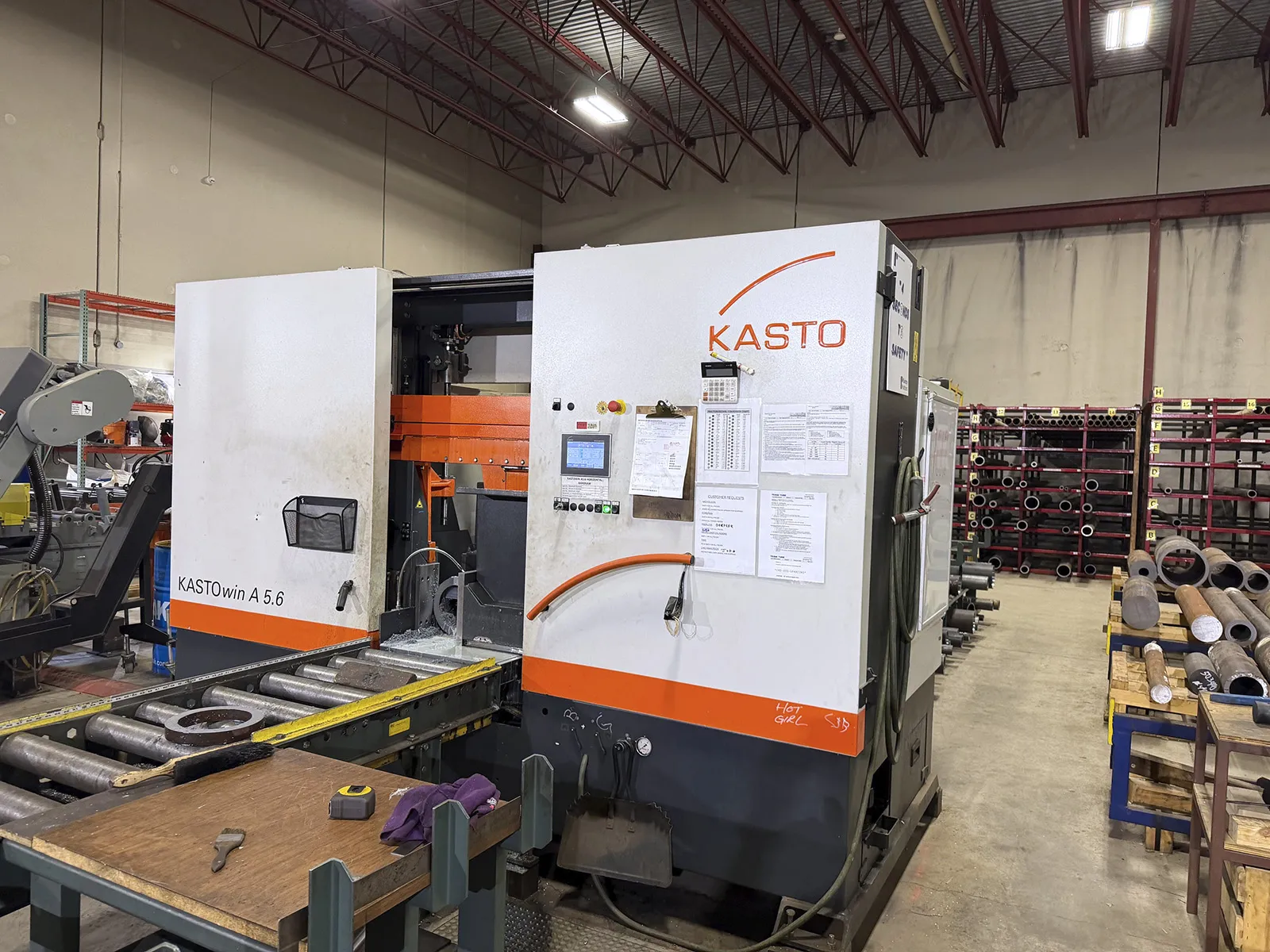

Kasto KastoWIN A 5.6 2014

machine specifications

• Cutting Range:

• Cutting range 90° round:

  560 mm (22.05 in)

• Cutting range 90° flat (W × H):

  560 × 560 mm (22.05 × 22.05 in)

• Clamping range:

  0–560 mm

• Smallest cut-off length:

  10 mm (0.39 in)

• Smallest dimension to be cut:

  25 × 25 mm (0.98 × 0.98 in)

• Shortest remnant length (automatic operation):

  35 mm (1.38 in)

• Shortest remnant length (individual cut):

  10 mm (0.39 in)

• Dimensions & Weight:

• Length:

  1,650 mm (64.96 in)

• Width:

  3,300 mm (129.92 in)

• Height:

  2,280 mm (89.76 in)

• Material support height :

  700 mm (27.56 in)

• Weight:

  3,800 kg (8,377.57 lbs)

• Saw motor (frequency controlled):

  5.5 kW (7.38 hp)

• Total Power:

  8 kW (10.73 hp)

• Cutting speed (infinitely adjustable):

  12–150 m/min (39–492 ft/min)

• Saw Blade Dimensions:

  7,067 × 54 × 1.6 mm (278.23 × 2.13 × 0.06 in)

• Material feed length (individual cut):

  500 mm (19.69 in)

• Multiple Feed:

  9,999 mm (393.66 in)

• Machine roller conveyor length:

  1,100 mm (43.31 in)

• Transport rollers:

  8 ball-bearing massive rollers, 70 mm diameter, spaced 135 mm apart

• Cutting Feed:

  Electrically adjustable via ball bearing spindle

• Material feed:

  Ball bearing spindle

• Material clamping:

  Hydraulic

• Saw blade cleaning:

  Self-adjusting chip brush, driven by electric motor
