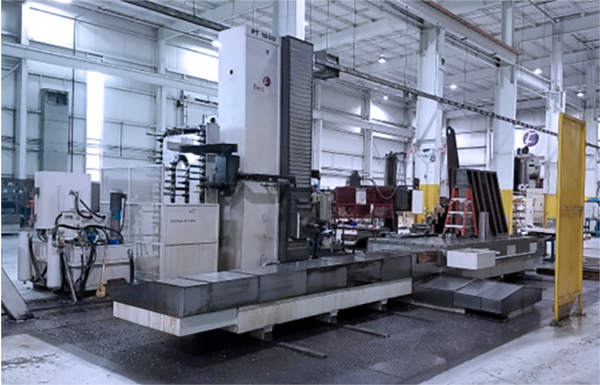

Giddings & Lewis PT-1800 2008

machine specifications

• Table Size - L:

  61"

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Table Size - W:

  30"

• Spindle Motor (HP):

  74 HP

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• Turret Capacity:

  8 Positions

• Spindle Diameter:

  6.1"

• Vertical Head Travel, Y-Axis:

  141.73"

• Table Cross Travel X-Axis:

  165.35"

• Saddle Travel, W-Axis:

  59.05"

• Spindle Travel, Z-Axis:

  49.2"

• Spindle Speed Ranges:

  4

• Rapid Traverse, X, Y, Z-Axes:

  985 IPM

• Rapid Traverse, W-Axis:

  708.66 IPM

• Electrics:

  460V 3Ph 60 Cycle
