This Machine has been sold and is No longer Available... Find similar machines below

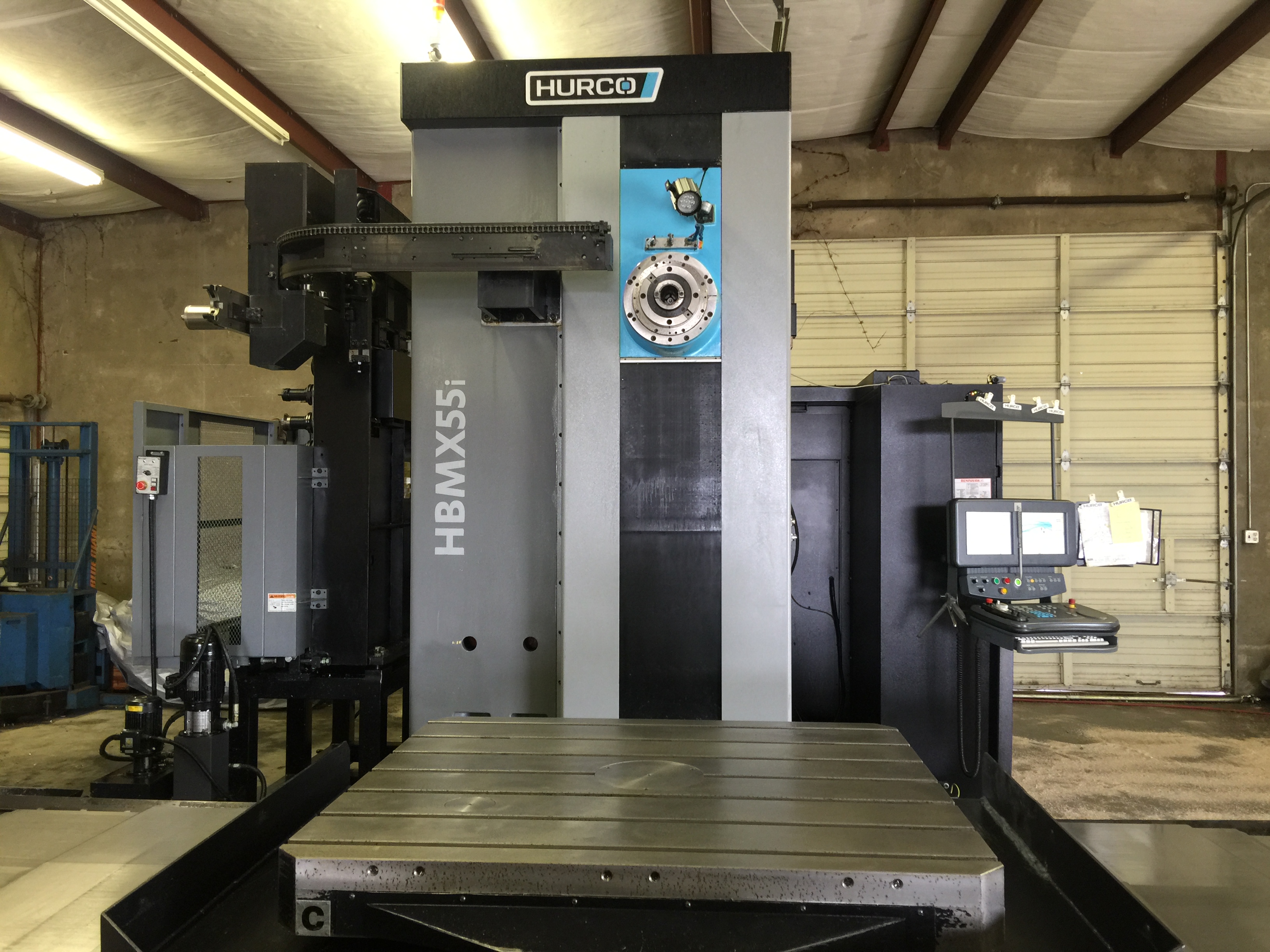

Hurco HBMX55i 2014

MAKE: Hurco
YEAR: 2014
TYPE: Horizontal Boring Mill

MODEL: HBMX55i
CONTROL: Hurco WinMax
REF #: 731881

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Spindle Taper (CAT/BT):

HSK-463
Spindle Speed:

12,000 RPM
Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Options:

WinMax Desktop Software, DXF Transfer, UltiPocket, NC / Conversational Merge. Lettering and Part Serialization, UltiMonitor, High Pressure Thru Coolant Spindle, Radio Frequency 40 Part Probe and Tool probe, DXF Transfer, Tool and Material Library, Transfe
Pallet Size (inches):

25"

machine equipped with

WinMax Desktop Software
DXF Transfer
UltiPocket
NC / Conversational Merge. Lettering and Part Serialization
UltiMonitor
High Pressure Thru Coolant Spindle
Radio Frequency 40 Part Probe and Tool probe
DXF Transfer
Tool and Material Library
Transfe

machine description

Axis Travel (X, Y, Z, W): 55.1 x 54.7 x 43.3 x 19.7 in Table Size: 44 x 49 in Max Weight on Table : 8,819 lbs Peak Spindle Motor Power: 30 hp Max Spindle Speed: 8-454 rpm Low Gear / 8-2,500 rpm High Gear Max Spindle Motor Torque: 1,106 ft. lbs. Number of Tools Standard: 60 Tool Type: CAT 50 Boring Bar Diameter: 4.3 in Max Tool Diameter: 4.7 in With adjacent sides empty: 9.8 in Max Programmable Feedrate X,Y,Z,W: Axis X,Y,Z - 299.2 in/min W: 157.5 in/min Rapid Traverse X,Y,Z,W Axis: X,Y,Z: 393.7 in/min - W: 157.5 in/min Machine Height: 132.7 in Required Floor Space: 220.4 x 207.3 in Machine Weight: 42,328 lbs Max Tool Weight: 55.1 lbs Max Tool Length: 15.7 in Installed Date: 03/04/2015 Spindle Hours: 931 Price New As Equipped: $464,140.00
