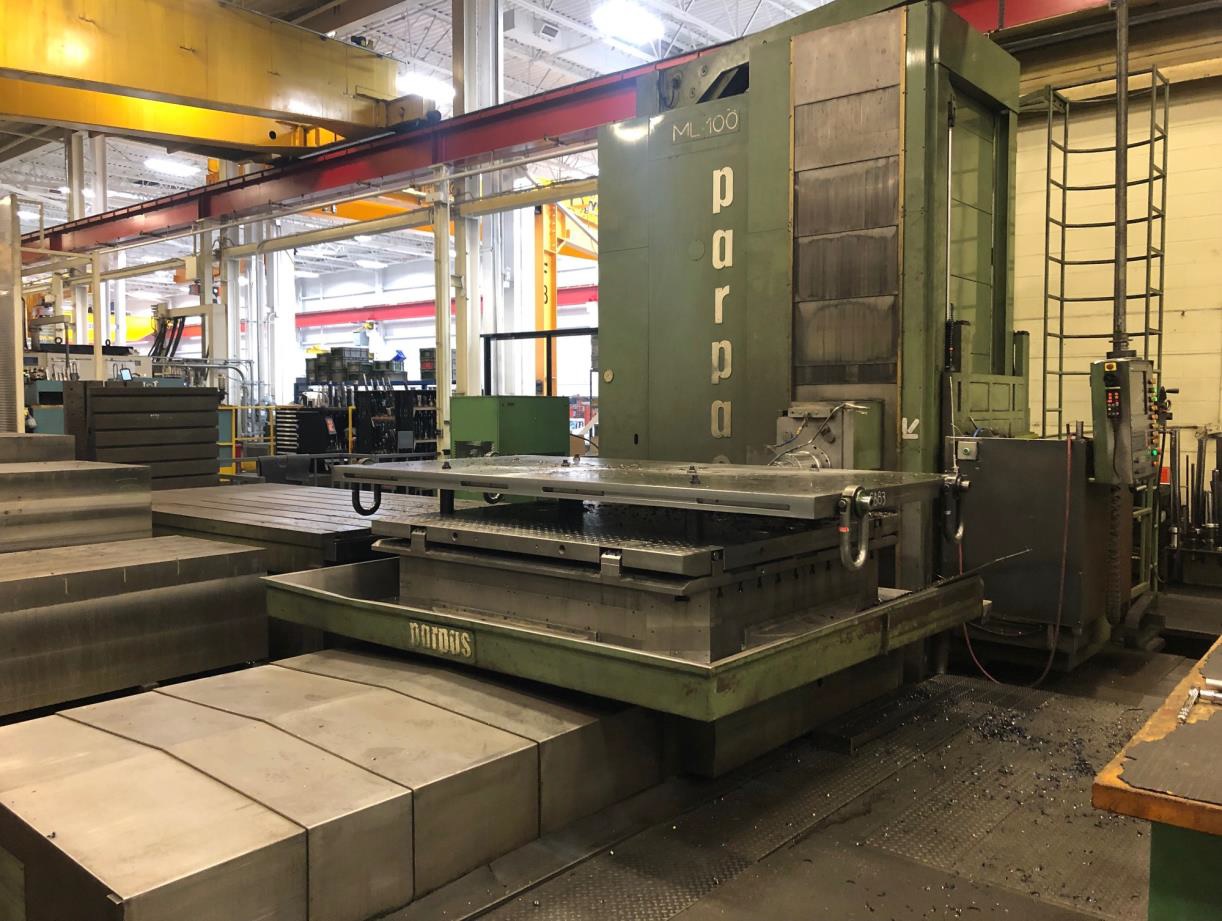

Parpas ML100 1996

machine specifications

• Wire Diameter (inches):

  3333

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Power:

  220v / 3-Phase

• Control:

  Heidenhein TNC 530

• Measuring System:

  Heidenhein Scales

• Drives:

  Indramat Controler

• X-Axis Travel:

  14.3"

• Y-Axis Travel:

  27.6"

• Z-Axis Travel:

  43.5"

• Quill (W-Axis) Travel:

  26 IPM

• U Axis Rotary Table In/Out Travel:

  26 IPM

• Axis Rapid:

  315 IPM

• Spindle Taper:

  CAT 40 (Big Plus)

• spindle power:

  37 kW (Max 53 kW)

• Spindle RPM:

  10-2500

• Spindle Gear Box:

  2 Gear

• 2 Tables:

  Rotary / Stationary

• Rotary Table Model:

  Rt1520

• Rotary Table:

  360 Deg Postioning

• Rotary Table Weight Capacity:

  88,000 Lbs

• Rotary Table Size:

  78" x 78"

• Rotary Speed:

  2 RPM

• Stationary Table Weight Capacity:

  Unlimited

• Stationary Table Size:

  149”X 78.7”

• Coolant Tank Capacity:

  800 L

• Cooling Units:

  Hydraulic Oil / Spindle Oil
