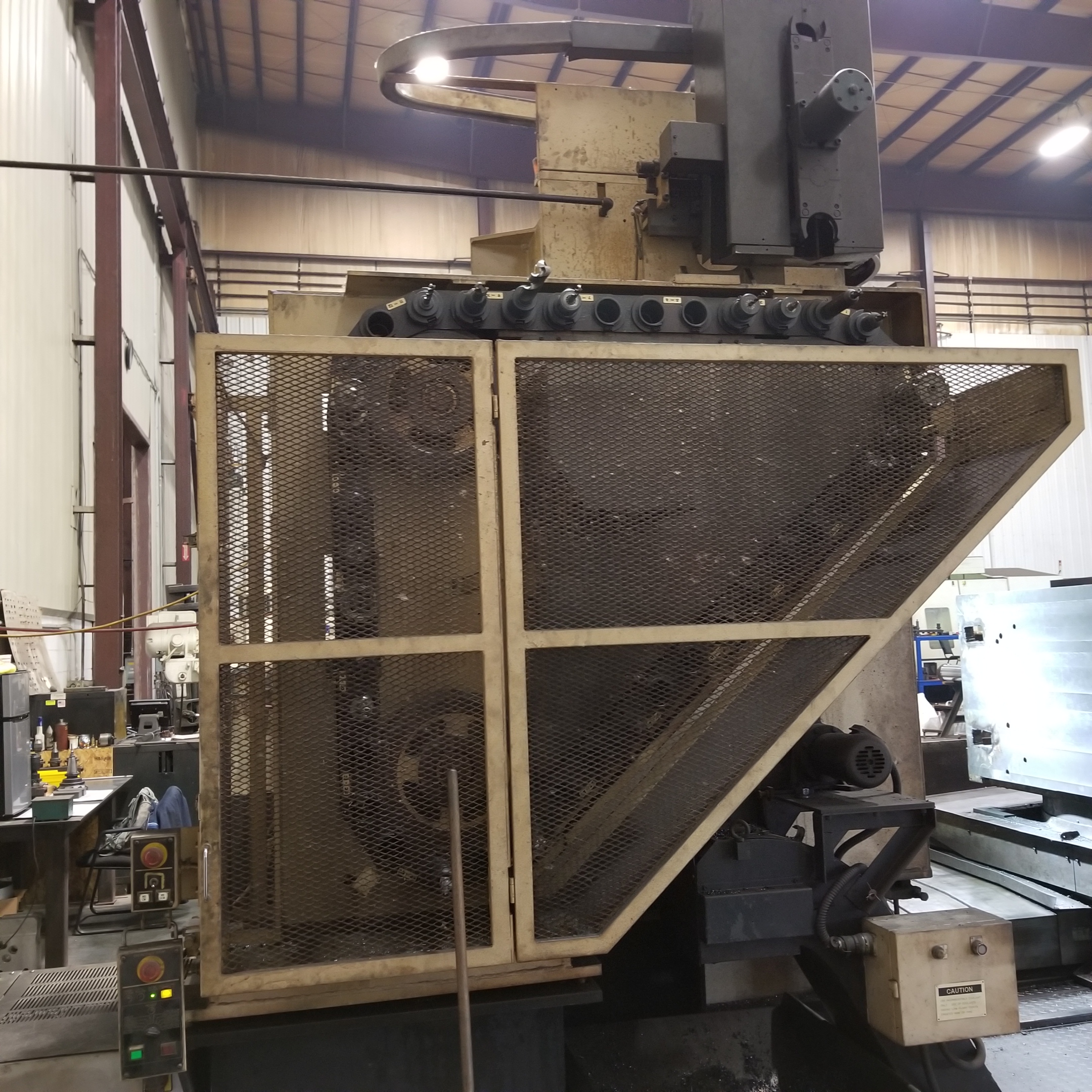

Toshiba BTD-11ER16 1994

machine specifications

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Table Size - L:

  61"

• Table Size - W:

  30"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• W Axis Travel:

  In/Out Spindle: 20"

• Spindle Diameter:

  4.3"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Table Load Capacity:

  13,860 lbs.

• Number of Tool Positions:

  40 Position ATC

• Cutting Feed Rates:

  1 - 157 IPM

• Table Indexing Increment:

  1 Degree Indexing

• Rapid Traverse X, Y, Z / W:

  394 / 197 IPM
