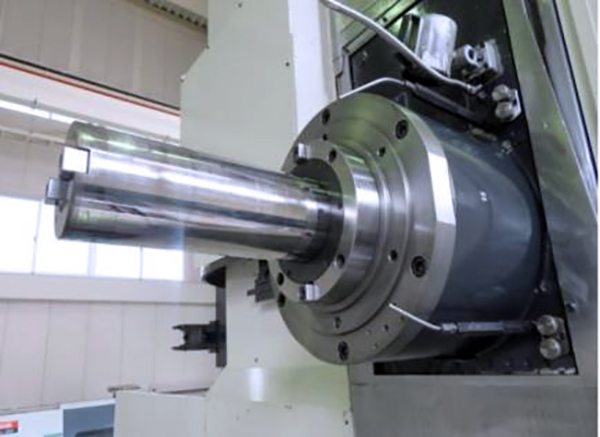

Toshiba BTD-130H.R16 2014

machine specifications

• Table Size:

  55.12" x 63"

• Max Tool Length:

  15.75"

• TOOL CAPACITY:

  90 ATC

• Coolant Pressure:

  174 PSI

• Spindle Motor (Cont./30 min):

  40/30 HP

• Spindle Taper:

  7/24 Taper NO. 50

• Rapid Traverse Rates (X/Y/Z):

  472.44 ipm

• B-Axis Travel:

  0.0001-Deg to Infinite

• W-Axis Travel:

  27.56"

• Rapid Traverse Rate (W):

  196.85 ipm

• Z-Axis Travel:

  57.09"

• Rapid Traverse Rate (B):

  720 Degree/min

• Y-Axis Travel:

  59.05"

• X-Axis Travel:

  78.74"

• Spindle Speed (3 Step Speed Range):

  5 - 2500 rpm

• Table Load Capacity:

  13,890 lbs

• Max Tool Diameter:

  9.45" (When Adjacent Pots are Empty)

• Max Tool Diameter (When Pots are Full):

  4.92" Dia
