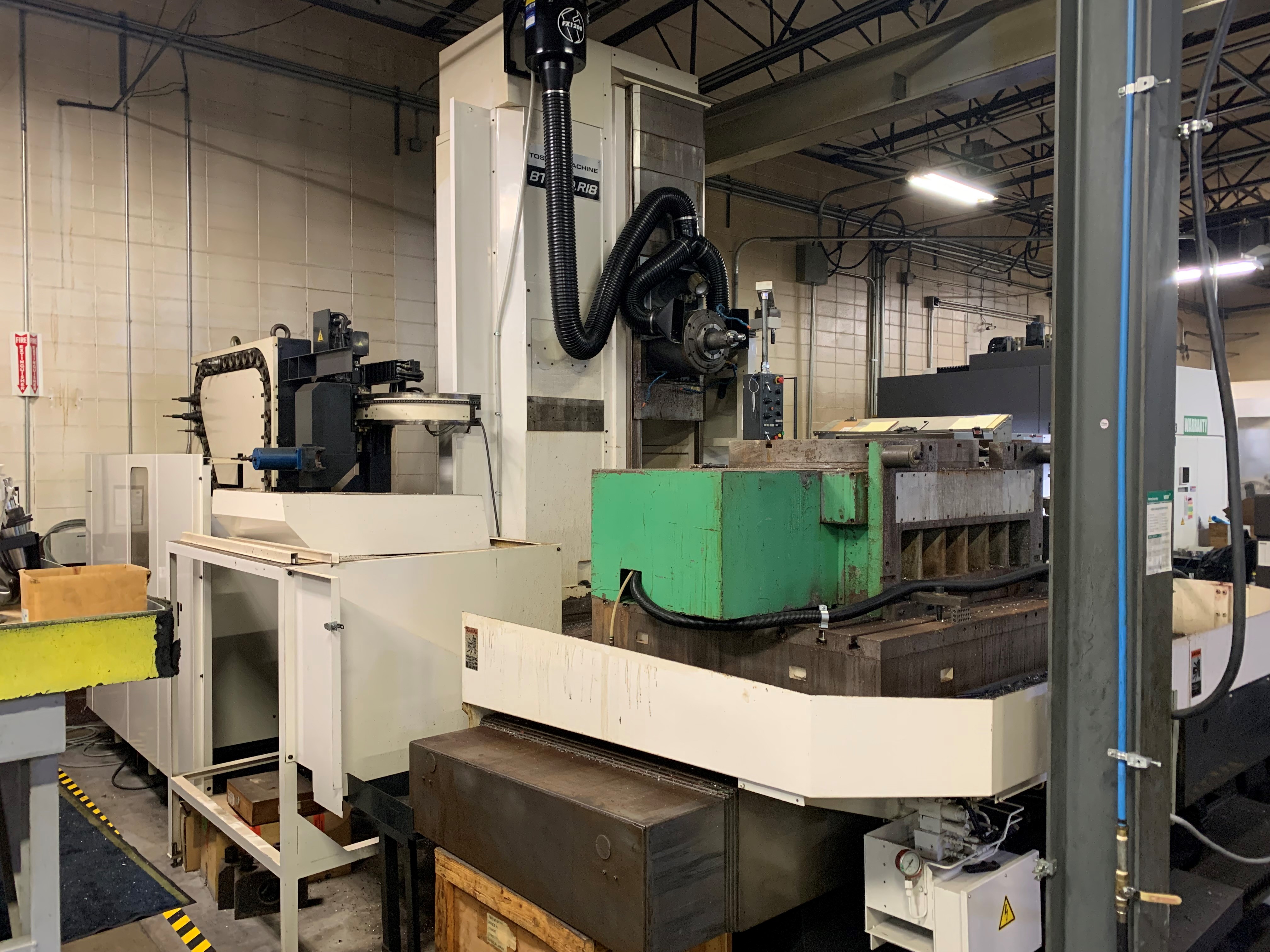

Toshiba BTH-110.R18 2007

machine specifications

• X Axis Travel:

  100"

• Y Axis Travel:

  80"

• Z Axis Travel:

  60"

• W Axis Travel:

  20"

• Distance from Table Surface to Spindle Center:

  0 - 80"

• Distance from table center to spindle gage plane:

  23.6" - 82.7"

• Table Working Surface:

  55.1" x 70.9"

• Table Loading Capacity:

  22,000 lbs

• Spindle Diameter:

  4.3"

• SPINDLE SPEED RANGE:

  5 - 4000 RPM

• Feedrates (X/Y/Z):

  .04" - 393 IPM

• Milling Spindle Nose Diameter:

  8.9"

• Tool Storage Capacity:

  60

• Type of Spindle Taper:

  No.50

• Spindle Motor:

  30 MIn/ Cont 40/ 30 HP

• Machine Size:

  236" x 236" x 181"

• Machine Weight:

  66,000 lbs

• Rapid Traverse Rate (X/Y/Z):

  708 ipm

• Table Surface Configuration :

  9T-Slots, .87" Width; 6.3" Pitch

• Table Rotation Speed:

  720 Deg Per Minute
