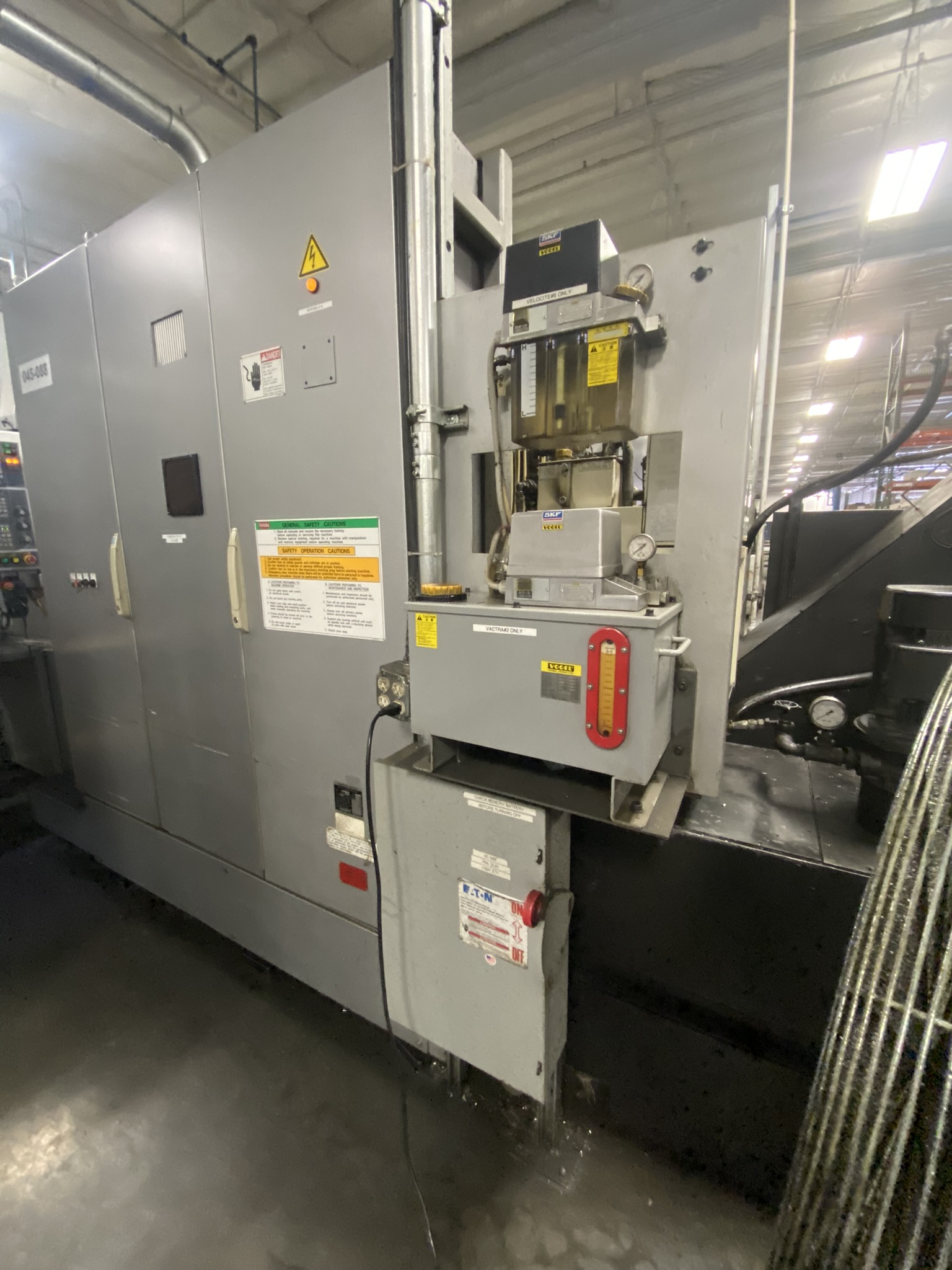

Toyoda FH450S Cell 2007

machine specifications

• Pallet Size:

  17.7" x 17.7"

• Table Index:

  Full NC table (360,000 positions)

• X Axis Travel:

  23.62”

• Y Axis Travel:

  23.62”

• Z Axis Travel:

  23.62”

• Max Workpiece Swing:

  24.80”

• Max Workpiece Height:

  35.43"

• Maximum Work Load on the Pallet:

  880 lb (400 kg)

• Spindle Output Torque:

  123 ft-lb (167 Nm)

• Rapid Feed Rate (X,Y,Z):

  1,968 ipm (50 m/min)

• Standard Floor Space:

  100" x 243"

• Machine height:

  125"

• Standard Net Weight:

  25,300 lb (11,500 kg)
