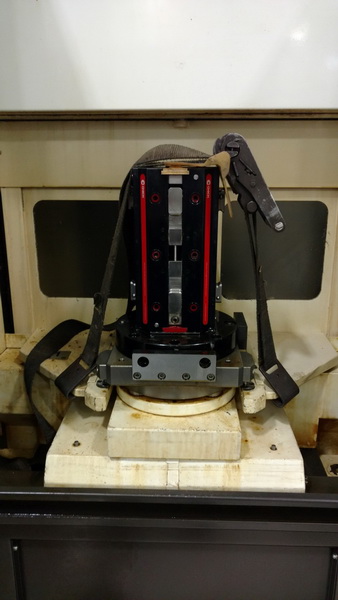

Kitamura HX250G 2012

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Resonator ( Type ):

  55

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Pallet Size (inches):

  25"

• Max Table Load:

  220 Lbs

• Max Part Diameter:

  13.78"

• Max Part Height:

  15.75"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• B-Axis Travel:

  0 to 360 Degrees

• Dist. From Table Top to Spindle Center:

  2.4" - 14.4"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  10/15HP

• Rapid Traverse Rates:

  1,889 IPM

• Max Cutting Speed (IPM):

  1,889 IPM

• Tool Changer Type:

  60 ATC

• Max Tool Length:

  7.9"

• Max Tool Weight:

  4.4 Lbs
