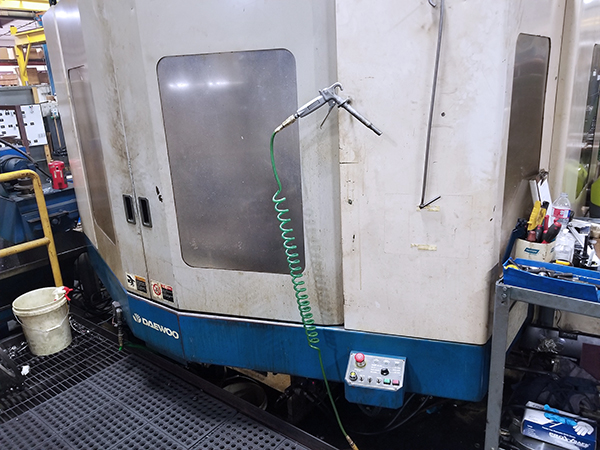

Daewoo DHM-800 2004

machine specifications

• X-Axis Travel:

  49.2"

• Y-Axis Travel:

  39.4"

• Z-Axis Travel:

  39.4"

• Pallet Index:

  .001 Degrees

• Spindle Speed:

  6000 RPM

• Spindle Taper:

  CAT 50

• Spindle Motor:

  30 HP

• Spindle Torque:

  1237 ft. lbs.

• Spindle Center To Table Top:

  3" - 42.3"

• Spindle Nose to Table Center:

  7.9" - 47.2"

• TOOL CAPACITY:

  90 ATC

• Rapid Traverse Rates:

  945 IPM (X,Y,X)

• Tool Change Time:

  2.5 / 9.0 Seconds (T/T/C-C)

• Pallet Change Time:

  29 Seconds

• Pallet Load Capacity:

  3520 lbs.

• Max Tool Diameter:

  5.3" / 9.8"

• Max Tool Length:

  21.7"

• Max Tool Weight:

  57 lbs.
