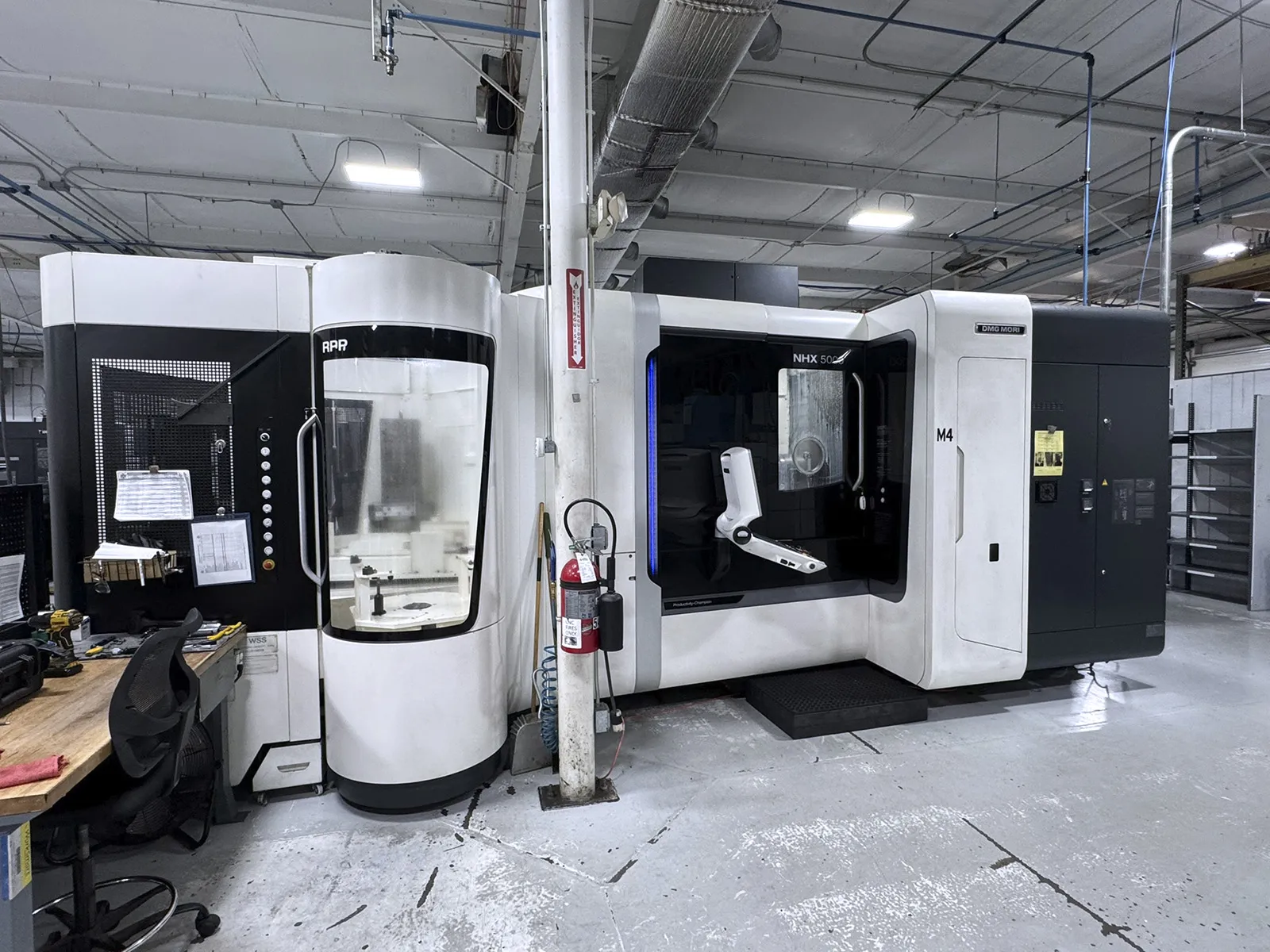

DMG Mori NHX 5000 RPP 2018

machine specifications

• X-Axis Travel:

  28.7"

• Z-axis travel mm:

  34.6"

• Y-axis travel mm:

  28.7"

• B-Axis Indexing:

  0.001 deg

• Distance from Pallet Surface to Spindle Center:

  31.9"

• Distance from pallet center to spindle gage plane:

  37.4"

• No of Pallets:

  5 pallets

• Distance from floor surface to pallet surface:

  47.2"

• Pallet working surface:

  19.7" x 19.7"

• Pallet loading capacity:

  1,540lbs

• Maximum workpiece swing diameter :

  31.4"

• Maximum Workpiece Height:

  39.4"

• Minimum pallet Indexing angle deg:

  0.001

• Max. Spindle Speed:

  High speed 20,000 RPM

• Type of Spindle Taper:

  CAT 40

• TOOL CAPACITY:

  180 tools

• X-Axis Feedrate:

  2,362.2 IPM

• Y-axis Feedrate:

  2,362.2 IPM

• Z-Axis Feedrate:

  2,362.2 IPM

• Cutting Feedrate:

  2,362.2 IPM

• Coolant Tank Capacity:

  211.2gal
