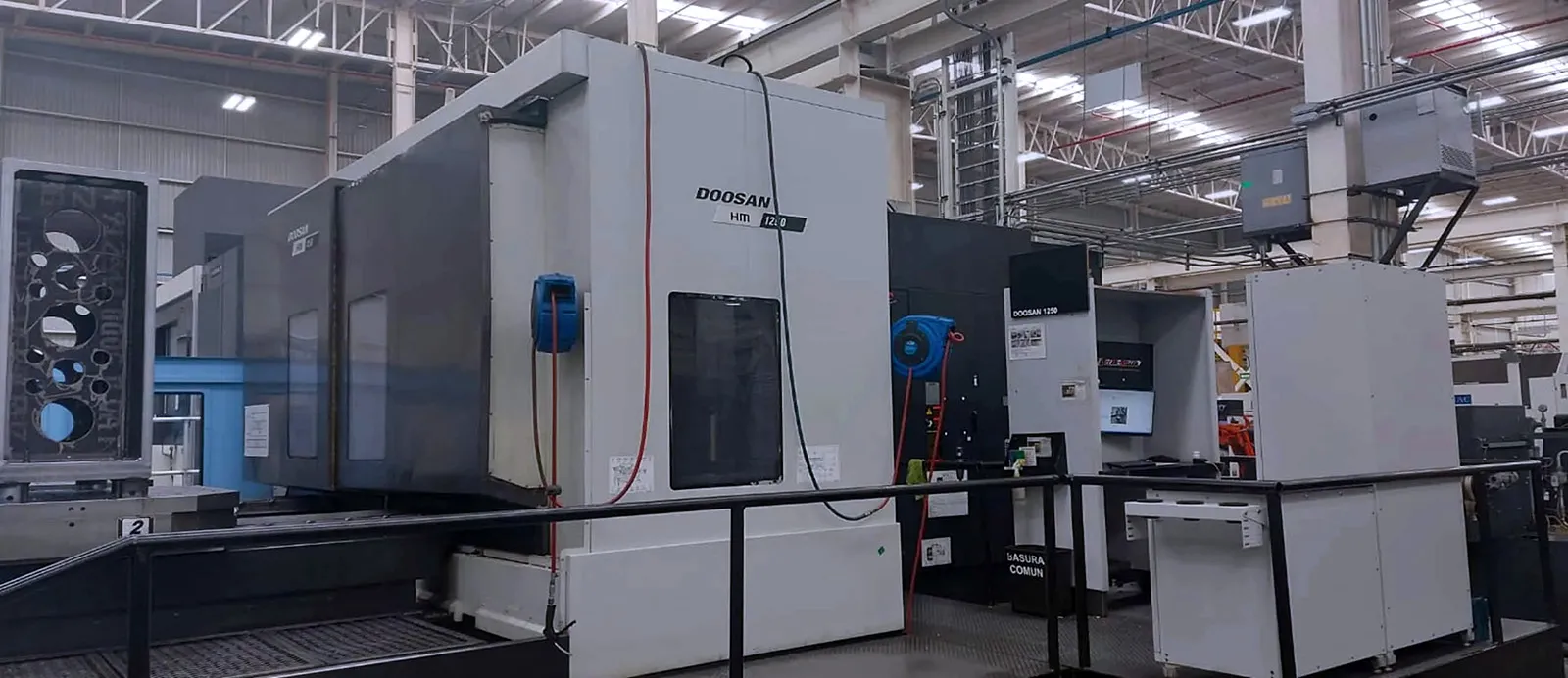

Doosan HM 1250 2015

machine specifications

• Pallet Size (2 Pallets):

  49.2" X 49.2"

• X-Axis Travel:

  82.69"

• Y-Axis Travel:

  59"

• Z-Axis Travel:

  59"

• DISTANCE FROM SPINDLE CENTER TO PALLET TOP:

  1.9" TO 61"

• DISTANCE FROM SPINDLE NOSE TO TABLE CENTER:

  11.2" TO 70.2"

• Pallet Load Capacity:

  13,320 LBS

• Pallet Indexing:

  1 DEGREE

• Maximum Workpiece Size:

  78.74" X 67.9"

• MAXIMUM SPINDLE SPEEDS:

  6,000 RPM

• Spindle Taper:

  50

• Spindle Motor:

  50 HP

• Rapid Traverse Rate:

  945 IPM

• Cutting Feed Rate:

  472 IPM

• Tool Changer Capacity:

  90 TOOLS

• MAX TOOL DIAMETER (CONTINUOUS/ADJACENT PORTS ARE EMPTY):

  5.1"/11.8"

• Maximum Tool Length:

  25.5"

• Maximum Tool Weight:

  55 LBS

• Machine Size:

  402" L, 229" W, 160" TALL

• Machine Weight:

  68,200 LBS
