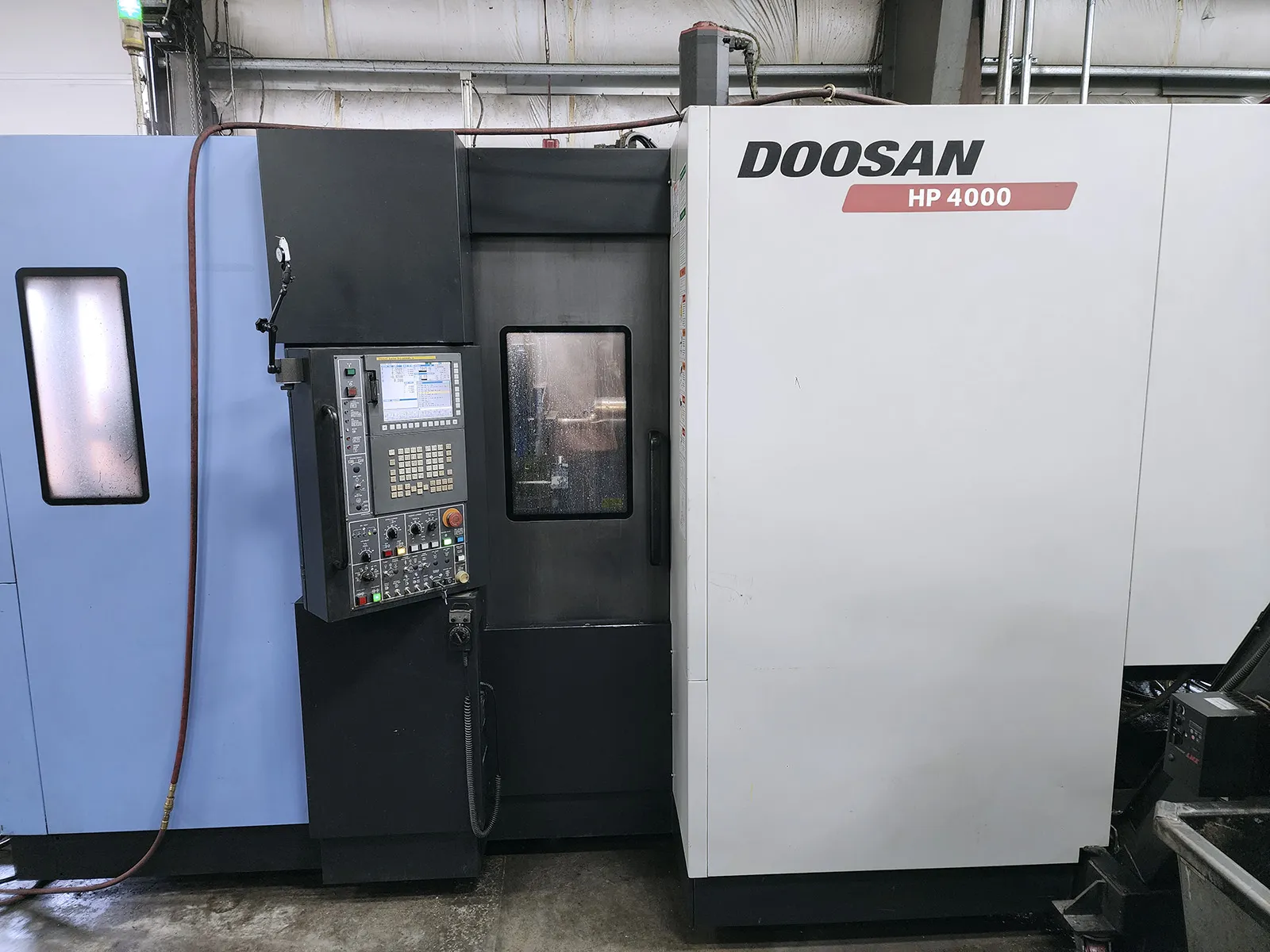

Doosan HP4000 2012

machine specifications

• X-Axis Travel:

  23.6 in

• Y-Axis Travel:

  22 in

• Z-Axis Travel:

  23.6 in

• Spindle Nose to Pallet Center:

  5.91 in – 29.53 in

• Spindle Center to Pallet Top:

  1.97 in – 24.02 in

• Pallet Dimensions:

  15.75" × 15.75"

• Number of Pallets:

  2-Pallet Automatic Pallet Changer

• Pallet Change Time:

  ~7 seconds

• Max Workpiece Weight:

  880 lbs

• Pallet Indexing (B-Axis):

  1°

• Max Spindle Speed:

  14,000 RPM

• Spindle Motor Power:

  30 HP / 22 kW

• Spindle Taper:

  CAT 40 Big Plus

• Max Tool Weight:

  22 lbs
