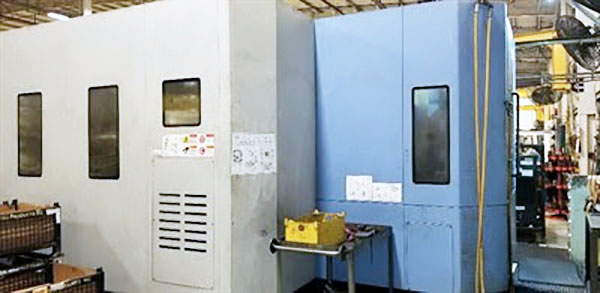

Doosan NHM 5000 2013

machine specifications

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Chuck Size (Inches):

  8"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  35 HP

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Nose to Pallet Center:

  3.9" - 37.4"

• Spindle Center to Pallet Top:

  2.9" - 30.5"

• Pallet Size (inches):

  25"

• Pallet Load Capacity:

  1763 Lbs.

• Pallet Indexing:

  .001 Degrees

• Tool Changer Type:

  60 ATC

• Maximum Tool Diameter:

  5.1" / 12.6"

• Maximum Tool Length:

  20.8"

• Maximum Tool Weight:

  66 Lbs.

• Rapid Traverse:

  X, Y, Z 1181 IPM

• Gear Ranges:

  2

• Cutting Feed:

  .04 - 590 IPM
