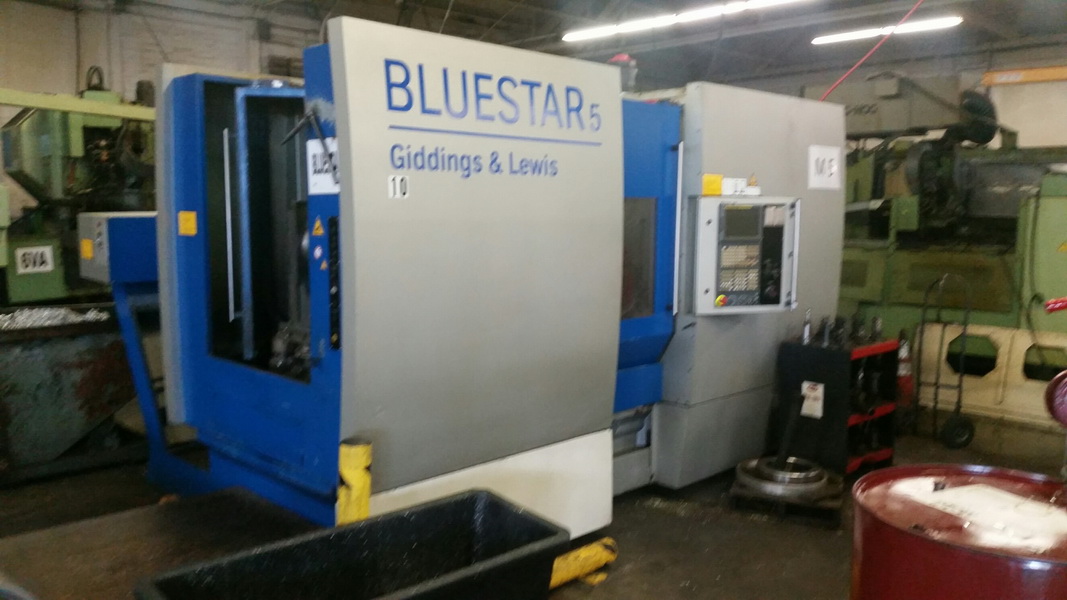

Giddings & Lewis Bluestar 5 2005

machine specifications

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Chuck Size (Inches):

  8"

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  17.4 HP

• Spindle Taper (CAT/BT):

  HSK-463

• Pallet Size (inches):

  25"

• Workzone swing:

  27.6"

• Workzone height:

  29.5"

• Pallet Load:

  1,100 lb

• Indexing:

  360 x 1 degree

• Index Accuracy A:

  =- 3 arc sec

• Torque:

  149 ft lb

• Feed rate feed:

  1-1970 in/min

• Rapid Traverse:

  1970 in/min

• Tool MagazineNumber of Tools:

  40 Tool

• Change Time:

  4 secs

• Tank Capacity:

  80 gallons

• External Coolant:

  60 gal/min
