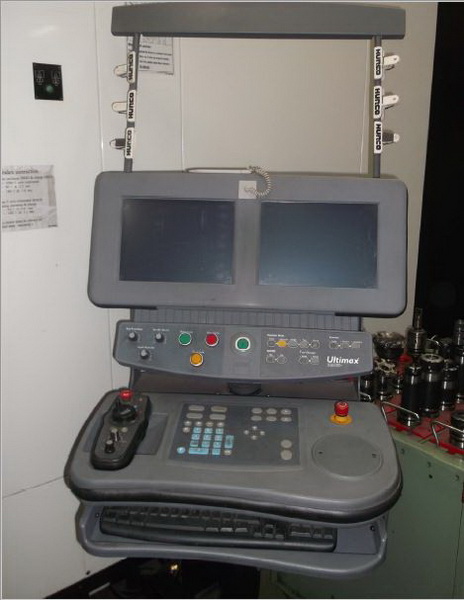

Hurco HTX-500 2011

machine specifications

• Max Swing (inches):

  17.32"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Throat Depth:

  9.45"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Pallet Working Surface (2):

  500mm x 500mm

• Maximum Table Load:

  1,100 lbs per pallet

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  24 HP

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Nose to Table:

  6.1” to 30.12”

• B Axis Motion:

  360 Degrees

• Coolant Capacity:

  153 Gallons

• B Axis Feedrate:

  33.3 RPM

• B Axis Clamping Force (4 cone clamp system):

  10,000 lbs

• B Axis Clamping Force ( Rotational ):

  1,100 lbs

• Pallet Top:

  (24) - M16 Hole Matrix on 3.94” Centers

• Spindle Motor Torque (1 min.):

  175 Ft. lbs @ 720 RPM

• Rapid Traverse Rate X,Y and Z:

  1,260 ipm

• Cutting Feed Rate:

  600 ipm

• LEAST COMMAND INCREMENT:

  0.0001”

• Positioning Accuracy X,Y/ Z:

  -/+ 0.0002”

• Repeatability X,Y/Z:

  -/+ 0.0001”

• Pallet Exchange Time:

  8 Seconds

• Positioning Accuracy B Axis:

  8 Arc-seconds

• Repeatability Accuracy B Axis:

  +/- 2 Arc-seconds

• Number of Stations:

  60 / CAT 40

• Tool To Tool ATC Time:

  2.5 Seconds

• Tool Changer Type:

  Electronic

• Maximum Tool Diameter:

  3.2”

• Maximum Tool Length:

  13.8”

• Voltage Required:

  208-240 VAC / 60Hz

• Power Rating:

  60 KVA

• Air Requirements:

  5 CFM @ 80-100 psi
