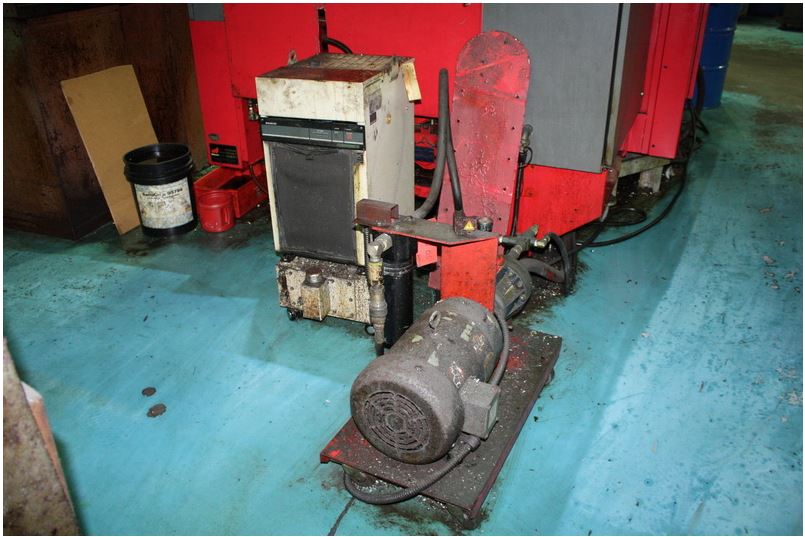

Matsuura ES450 1999

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  10/7.5 HP

• Spindle Taper (CAT/BT):

  HSK-463

• Pallet Size (inches):

  25"

• Pallet Load Capacity:

  440 lbs.

• Pallet Index:

  1 Degree

• Tool Changer Type:

  60 ATC

• Tool Change/Chip to Chip:

  2.5 / 6 sec

• Maximum Tool Length:

  11.8"

• Maximum Tool Weight:

  17.6 lbs

• Maximum Tool Diameter:

  3.5 " / 5.9"

• Feed Rate:

  0.4 - 393.7 IPM

• Resonator ( Type ):

  55

• Bar Stock Capacity:

  2.0"

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22
