This Machine has been sold and is No longer Available... Find similar machines below

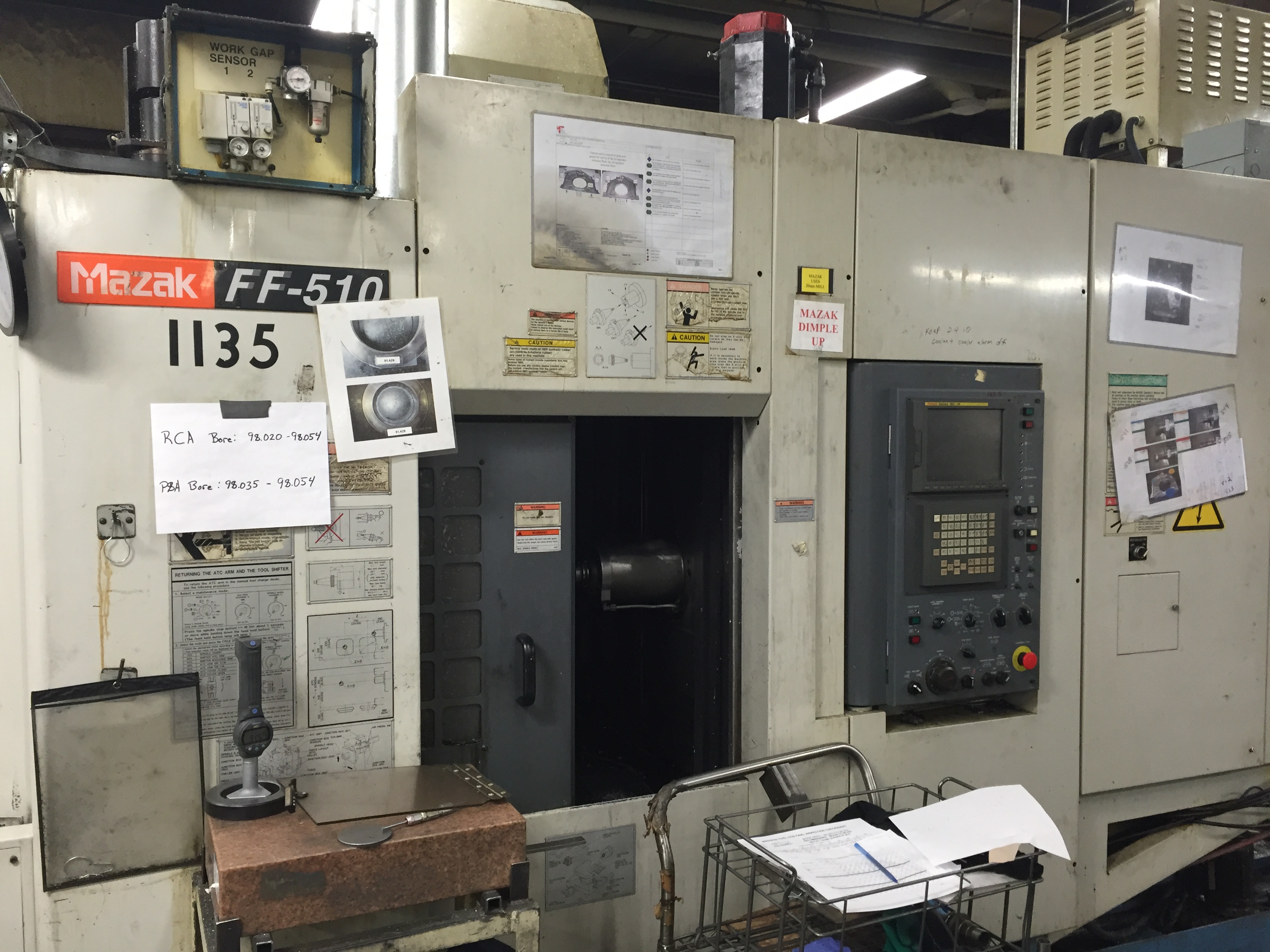

Mazak FF510 2001

MAKE: Mazak
YEAR: 2001
TYPE: Horizontal Machining Center

MODEL: FF510
CONTROL: FANUC 180iM
REF #: 634926

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Spindle Motor (HP):

20 HP
Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Pallet Size (inches):

25"

machine description

90 Degree indexing Coolant thru 15,000 rpm Spindle Had X,Y,Z ball screws, and guides replaced in the last 14 months. Also new spindle at the same time. Seller confirmed the following specs: Pallet Size / Number of Pallets 15.74" x 15.74" Table Load Capacity 550 lbs Table Indexing 90 Degree Pallet Change Time 6.3 seconds Maximum Work Diameter / Height 22.04" / 24.8" X-Axis Travel 20.07" Y-Axis Travel 20.07" Z-Axis Travel 20.07" Spindle Nose CAT 40 Spindle Speed 15,000 RPM Spindle Motor 30 Min. / Cont. 20 HP / 15 HP Spindle Nose to Pallet Center 3.94" - 24.02" Tool Magazine Capacity 24 Station ATC Max. Tool Diameter/Length/Weigth 4.53" / 11.8" / 15.4 lbs. Tool Change Time-tool to tool .45 Seconds Rapid Traverse Rates 2,360 IPM Cutting Feedrates 1575 IPM Machine Dimensions LxWxH 160" x 63" x 112.6" Machine Weight 16,720 lbs Equiped with 2 Pallet Changer System 90 Degree Pallet Index Positioning Chip Conveyor Coolant Through the Spindle Optional 24 Station Tool Changer Synchronized Tapping Chip Auger RS 232 Port Inteface High Speed Serial Bus Input Tool Life Monitoring Table Shower & Base Coolant Helical Interpolation Transformer Integral Spindle Motor Design All Available Manuals
