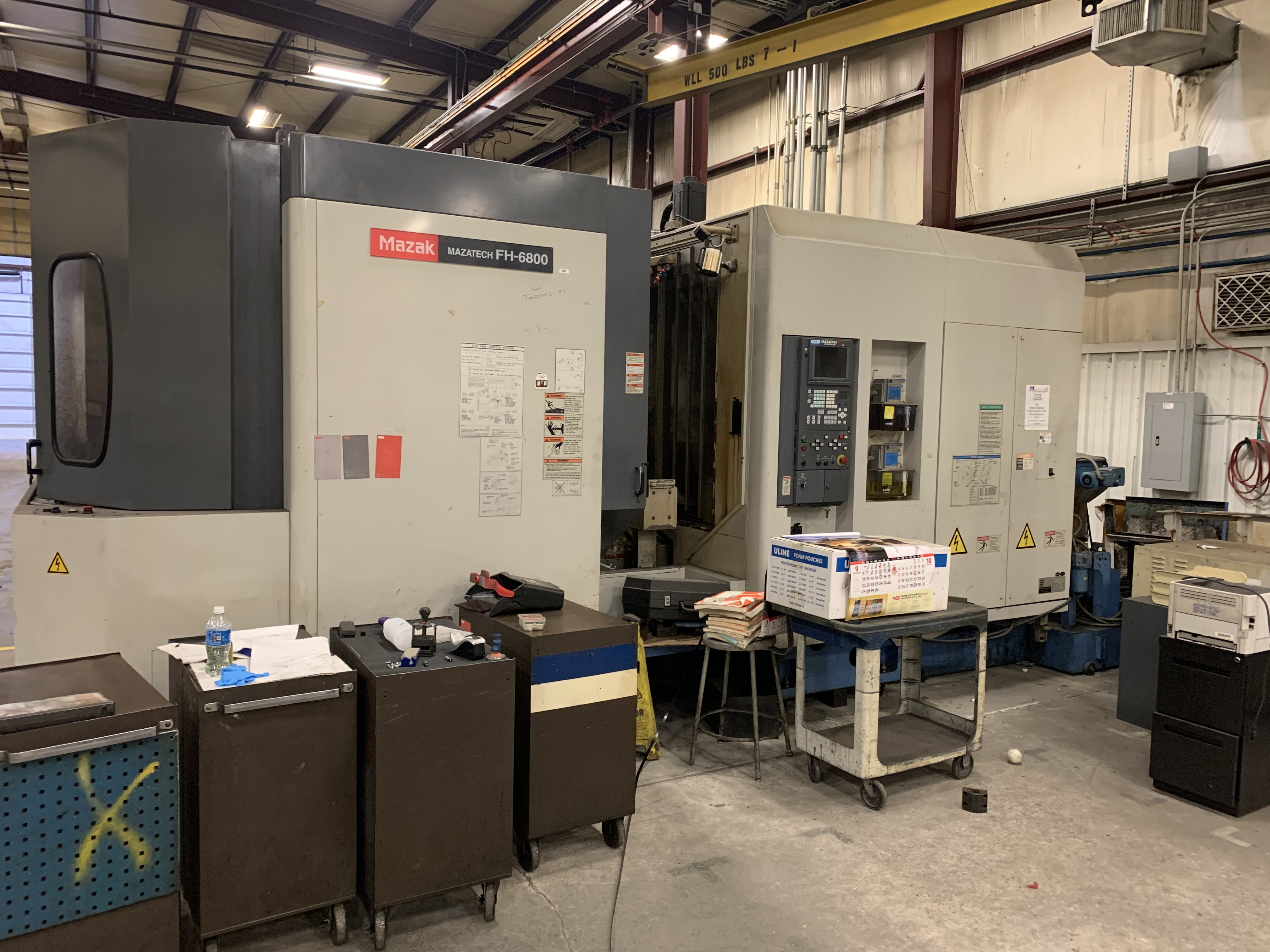

Mazak FH6800 2000

machine specifications

• X-Axis Travel:

  41.3"

• Rapid Traverse Rate:

  1,575 IPM

• Max Tool Weight:

  66 lbs.

• Max Tool Length:

  19.7"

• Max Tool Diameter:

  5.31"

• Chip To Chip Time:

  5 Seconds (Approx)

• Tool to Tool Time:

  1.8 Seconds

• Magazine Capacity:

  80 (OPTION)

• Spindle Cooling:

  Spindle Chiller Unit System

• Tool clamping force:

  4,630 ft./lbs.

• Number Of Ranges:

  1 Ranges(2)

• Spindle Speed Increment:

  1 RPM

• Spindle RPM:

  7,000

• Obtains Full HP:

  @ 480 RPM

• Pallet Size:

  24.8" x 24.8"

• Y-Axis Travel:

  31.5"

• Z-Axis Travel:

  34.7"

• Distance from Spindle Nose to Pallet Center:

  5.9" ? 40.6"

• Max Table Load:

  3,315 lbs.

• Max Workpiece Height:

  39.4"

• Max Workpiece Diameter:

  41.3"

• Spindle Nose:

  Cat #50

• Spindle Horsepower:

  50 HP

• Spindle Torque:

  386.9 ft./lbs.

• Constant Torque Range:

  35 ? 480(243) RPM

• Max. Tool Dia. W/Adjacent Pockets Empty:

  10.2"

• Type of Servo Drives:

  Digital AC Motors

• X-Axis Thrust:

  3,520 lbs

• Y-Axis Thrust:

  1760 lbs

• Z-Axis Thrust:

  3500 lbs

• Machine Height From Bottom of Base:

  125.5"
