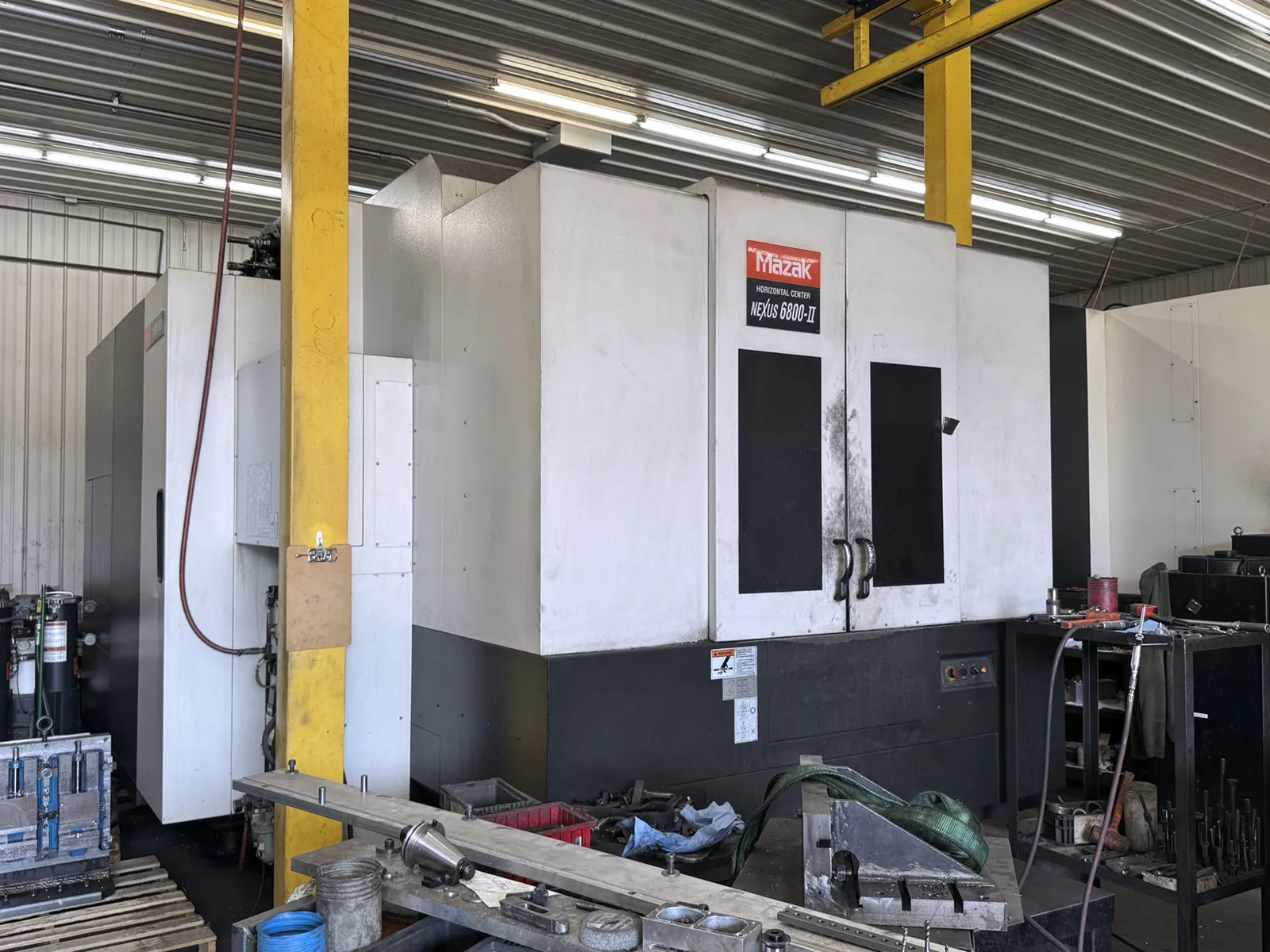

Mazak HCN 6800 2008

machine specifications

• Pallet Dimension:

  24.8” x 24.8”

• Pallet Load Capacity:

  3306 lbs

• Table Index:

  1 Degree / 360 Positions

• Max Workpiece Diameter:

  41.34”

• Max Workpiece Height:

  51.18”

• X-Axis Travel:

  41.34”

• Y-Axis Travel:

  35.43”

• Z-Axis Travel:

  38.58”

• Distance from the Spindle End to the Pallet Center:

  3.94” – 42.52”

• Distance from the Spindle Center to the Pallet Top:

  3.94” – 39.37”

• Spindle Taper:

  CAT 50

• Spindle Speed:

  8,000 RPM

• Main Motor50HP:

  30-min / 40HP Cont.

• Rapid travel:

  2362 IPM

• Max. Cutting Feed Rate:

  2362 IPM

• No. of Tool Pockets:

  60

• Chip To Chip Time:

  4.2 – 4.6 sec

• Machine Dimensions:

  226” x 129” x 133

• Machine Weight:

  41,887 lbs
