This Machine has been sold and is No longer Available... Find similar machines below

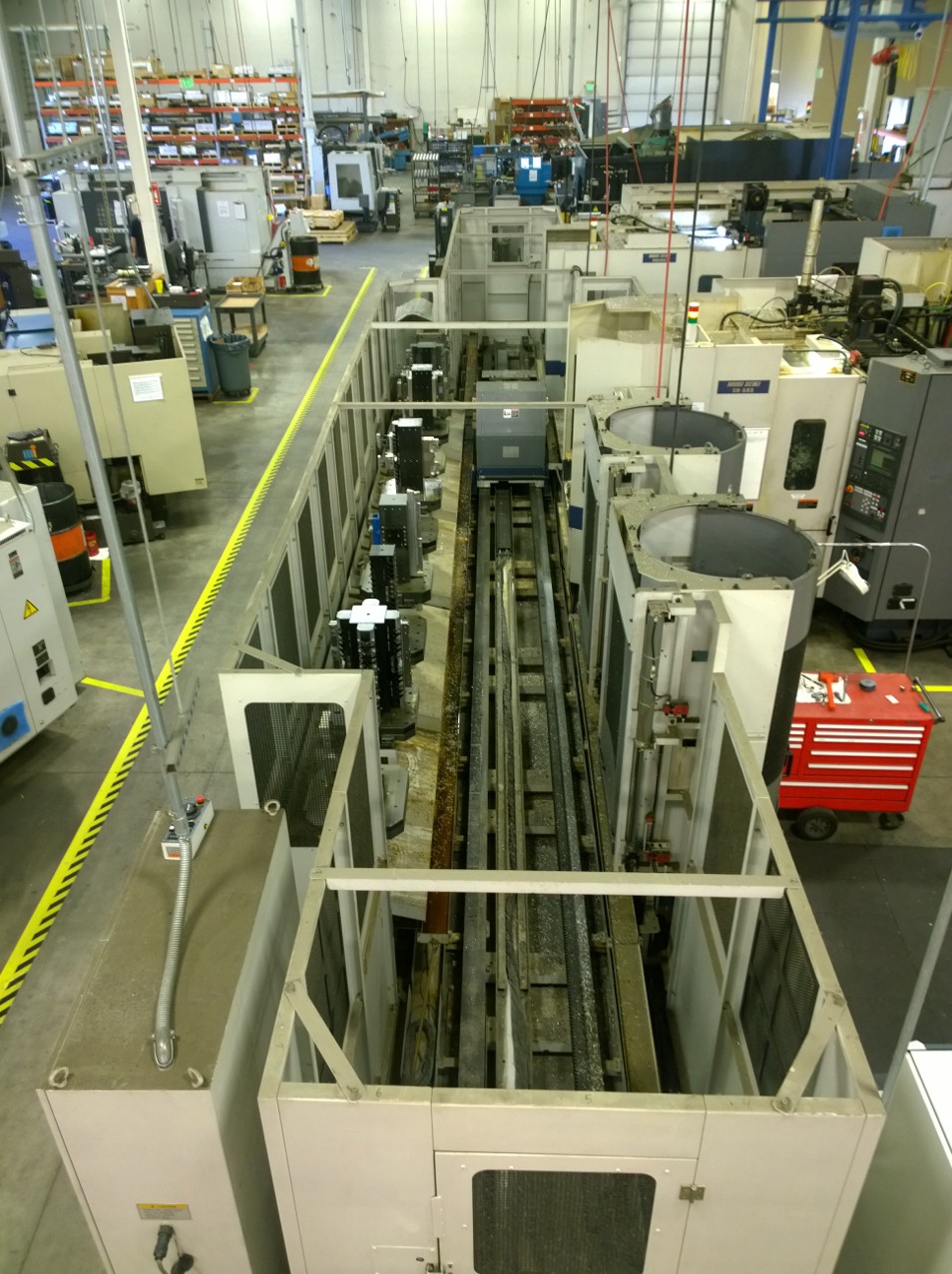

Mori Seiki Cell W/ Linear Pallet Pool 2000; 2001; 2001

machine specifications

  • Pallet Size:

    33.4" Diameter

  • Spindle Taper:

    CAT 40 (Big Plus)

  • Table Loading Capacity:

    1,100 lbs.

  • Coolant Thru Spindle:

    1,000 PSI

  • Pallet Indexing:

    Full 4th

  • Weight 2:

    35,200

  • Transport Dimensions 2:

    105.98" x 184.61" x 113.3

machine equipped with

  • Controls: MSG 502 MSG 501 FANUC Power Mate
  • Tool Setter
  • In-Process Probing
  • True 4th Axis
  • 1000 PSI Coolant Through Spindle
  • Microsoft Win NT / CAPS-LPS Software for Pallet Delivery System
  • No Tooling No Fixtures Tomb Stones Tower Vises No Double Stacker Delivery System

machine description

Machine #1: Mori Seiki SH-503/40
X-axis Travel: 24.8"
Y-axis Travel: 23.6"
Z-axis Travel: 25.6"
Distance Table Surface to Spindle Center: 1.97" to 25.6"
Distance Table Center to Spindle Gage Plane: 5.9" to 31.5"
Table Size: 19.7" x 19.7"
Table Loading Capacity: 1,100 lbs.
Max Workpiece Height: 27.5"
Spindle Speed: 12,000 rpm
Rapid Transverse Rate: 1,653.5 ipm
Number of Tools (Registry/Magazine): 400 Reg./ 180 Mag.
Spindle Taper: CAT-40 Machine #2: Mori Seiki SH5000/40
X-axis Travel: 31.5"
Y-axis Travel: 27.5"
Z-axis Travel: 27.5"
Distance Pallet Surface to Spindle Center: 1.97" to 29.5"
Distance from Table Center to Spindle Gage Plane: 3.94" to 31.5"
Table Size: 19.7" x 19.7"
Table Loading Capacity: 1,100 lbs.
Max Workpiece Height: 35.4"
Spindle Speed: 12,000 rpm
Rapid Transverse Rate: 1,970 ipm
Number of Tools (Registry/Magazine): 400 Reg./ 230 Mag.
Spindle Taper: CAT-40
