This Machine has been sold and is No longer Available... Find similar machines below

Sold Image

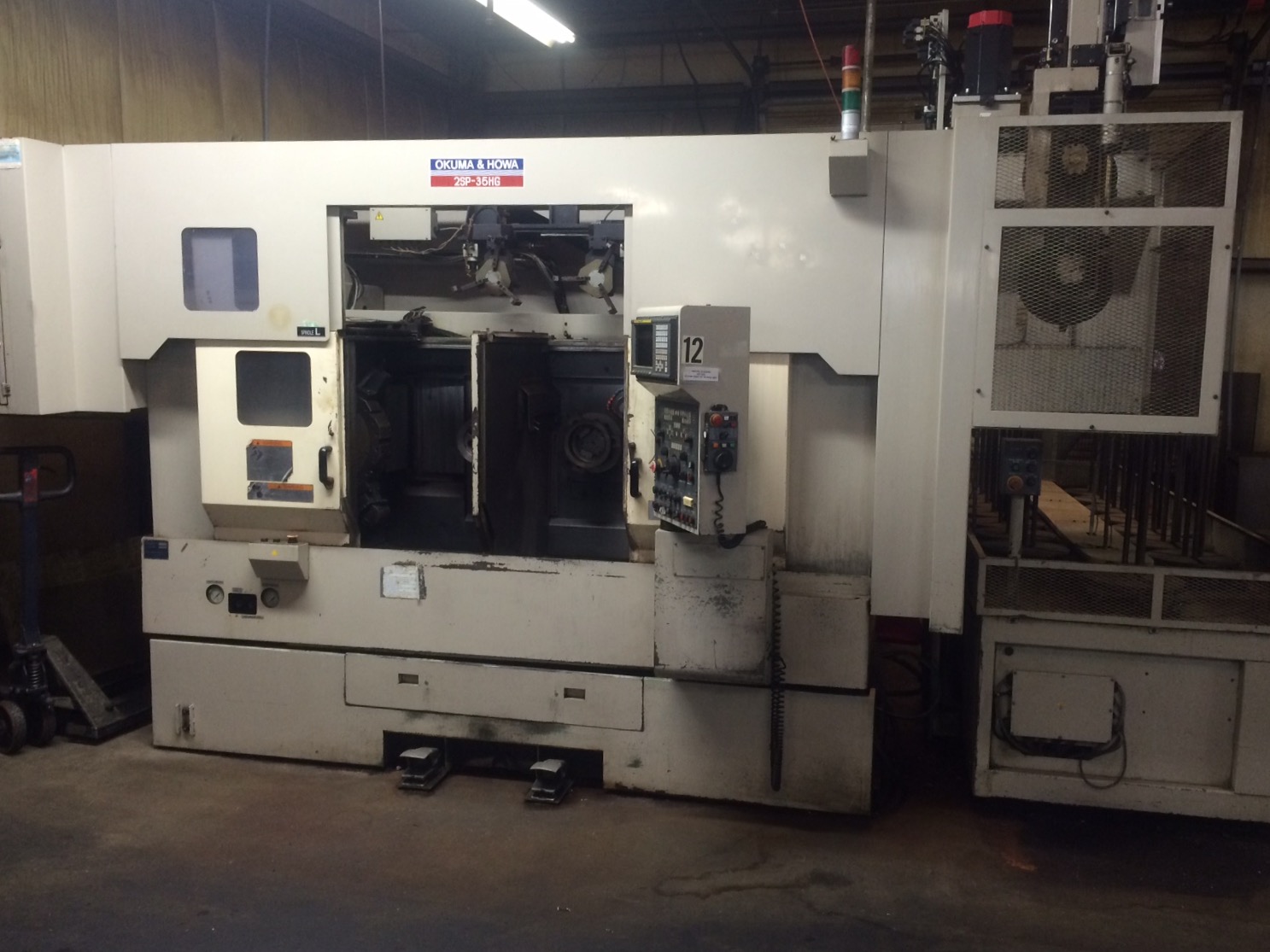

Okuma Howa 2SP-35HG 2001 1

Okuma Howa 2SP-35HG 2001

Loading highlight...

  • MODEL: 2SP-35HG

  • CONTROL: FANUC 18T-B

  • REF #: 525856

machine specifications

  • A Axis Stroke:

    77.17"

  • Longitudinal (Left/Right) A Axis:

    4724 IPM

  • B-Axis Stroke:

    33.46"

  • Vertical B- Axis:

    3937 IPM

  • Spindle Speed:

    12,000 RPM

  • Spindle Motor (HP):

    30 HP

  • Spindle Center Height from Floor:

    47.44"

  • Max Cutting Length:

    9.06"

  • Max Cutting Diameter:

    14.96"

  • Max Diameter:

    11.1"

  • Max Height:

    19.7"

  • Distance Between Spindles:

    17.72

  • Turret Type (Fanuc Alpha 6/2000 Motor):

    V12 + V12

  • Curvic Coupling Diameter:

    6.61"

  • Clamping Force:

    6,173 LBS

  • Indexing Time (Station to Station):

    0.3 Seconds

  • Standard Tool Size:

    1" x 1"

  • Horizontontal (in/Out) C Axis:

    1575 IPM

  • C Axis Stroke:

    11.02"

  • Loading Time:

    12 Seconds

  • Minimum Cycle Time:

    45 Seconds

  • Loader and Turnover Chucks- Jaw Stroke:

    1.57"

  • Max Load on Pallet:

    70 Kg.

  • Actuation Method:

    Forced Air

  • Number of Pallets:

    16

  • Resonator ( Type ):

    55

  • Bar Stock Capacity:

    2.0"

  • Z - Axis Travel (inches):

    14.7" / 375mm

  • Chuck Size (Inches):

    8"

  • X - Axis Travel (inches):

    15.7" / 400mm

  • Y - Axis Travel (inches):

    15.7" / 400mm

  • Throat Depth:

    9.45"

  • Spindle Taper (CAT/BT):

    HSK-463

  • Max Swing (inches):

    17.32"

  • Table Size - L:

    61"

  • Table Size - W:

    30"

  • Tool Changer Type:

    60 ATC

  • Turret Capacity:

    8 Positions

  • V-Axis Travel:

    5555

  • Vertical Travel of Ram:

    4444

  • Wire Diameter (inches):

    3333

  • Pallet Size (inches):

    25"

  • Wire Traveling Speed:

    22

machine equipped with

  • (1) Gantry Loader With (16) Station Pallet Pool
  • Fanuc 18t-B Cnc Control Heavy - Duty Rear Discharge Chip Conveyor
  • Coolant Tanks
  • All Available Books And Manuals

machine description

2001 OKUMA HOWA 2SP-35HG CNC TWIN SPINDLE TURNING CENTER, WITH GANTRY LOADER AND 16 PALLET STOCKER SIDE INPUT FEEDER TABLE. AND ALL INSTALLED WORKHOLDING AND OPTIONS INCLUDED IN SPECIAL PRICING. SPECIFICATIONS BASE MACHINE CAPACITY: MAXIMUM CUTTING DIAMETER.................... 14.96" MAXIMUM CUTTING LENGTH.........................9.06" DISTACE BETWEEN SPINDLES......................17.72" SPINDLE CENTER HEIGHT FROM FLOOR.........47.44" SPINDLES: SPINDLE MOTORS (FANUC Allpha X 2...........30 HP SPINDLE SPEED RANGE....................45- 3,500 RPM STANDARD CHUCK DIAMETER.......10" 3-Jaw Chucks SPINDLE NOSE............................................A2-8 TURRETS: TURRET TYPE (FANUC ALPHA 6/2000 MOTOR) V12 + V12 CURVIC COUPLING DIAMETER.....................6.61" CLAMPING FORCE...............................6,173 LBS INDEXING TIME(STATION TO STATION)....0.3 SEC. STANDARD TOOL SIZE.........................1.0" X 1.0" MAXIMUM BORING BAR SIZE..................1.75" OD MACHINE SIZE & MASS: FLOOR SPACE REQ...................215" X 152" x 160" WEIGHT...........................................24,200 LBS CNC LOADER INFORMATION GANTRY MODEL 3-AXIS SINGLE ARM CNC GANTRY LOADER WITH TURN OVER STATION , (16) STATION RIGHT SIDE ROTARY STACKER UNIT, 3 JAW LOADER CHUCKS, OVERHEAD GANTRY LOADER SPEEDS / TIMES: LONGITUDINAL (LEFT/RIGHT) A AXIS..........4724 IPM A AXIS STROKE.........................................77.17" VERTICAL B-AXIS......................................3937 IPM B-AXIS STROKE.........................................33.46" HORIZONTAL (IN/OUT) C AXIS....................1575 IPM C AXIS STROKE.........................................11.02" LOADING TIME..........................................12 SECONDS MINIMUM CYCLE TIME...............................45 SECONDS LOADER AND TURNOVER CHUCKS: JAW STROKE.........................................1.57" ACTUATION METHOD...................FORCED AIR Workpiece Stocker Specifications Max. Diameter:.................................... 11.1" Max Load on Pallet ...............................70 Kg. Max Height:......................................... 19.7" Number of Pallets:.......................... 16 Pallets
