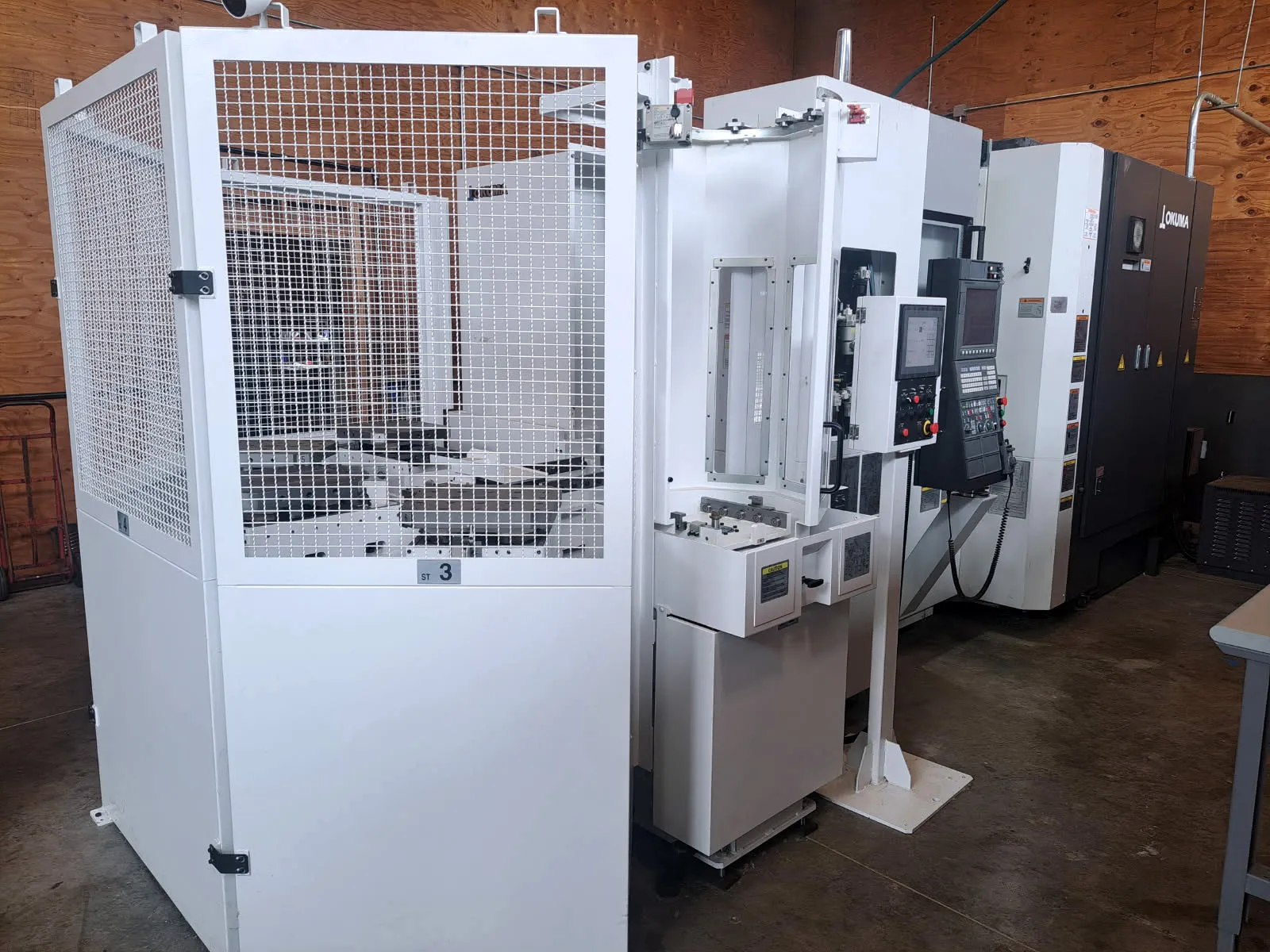

Okuma MB-4000H 2018

machine specifications

• X Travel:

  22.05"

• Y Travel:

  22.05"

• Z Travel:

  24.61"

• Spindle Center to Pallet Top:

  1.97” ~ 24.02”

• Spindle Nose to Pallet Center:

  3.35” ~ 27.95”

• Pallet Size:

  15.75” X 15.75”

• Max Table Load:

  880 Lbs.

• Pallet Indexing:

  0.001 Degree (Full Fourth)

• Max workplace diameter:

  23.62” X 35.43”

• Spindle Speed:

  15,000 RPM (Integral Spindle)

• Spindle Taper:

  CT40 Big+

• Rapid Traverse:

  2,362 IPM

• Cutting Feed Rate:

  2,362 IPM

• Spindle drive (10 min/cont.):

  40/30 HP

• TOOL CAPACITY:

  64 ATC

• Max Tool Diameter w/ Adjacent Tools:

  2.76”

• Max Tool Length:

  15.75”

• Max Tool Weight:

  22 Lbs.

• Read more
