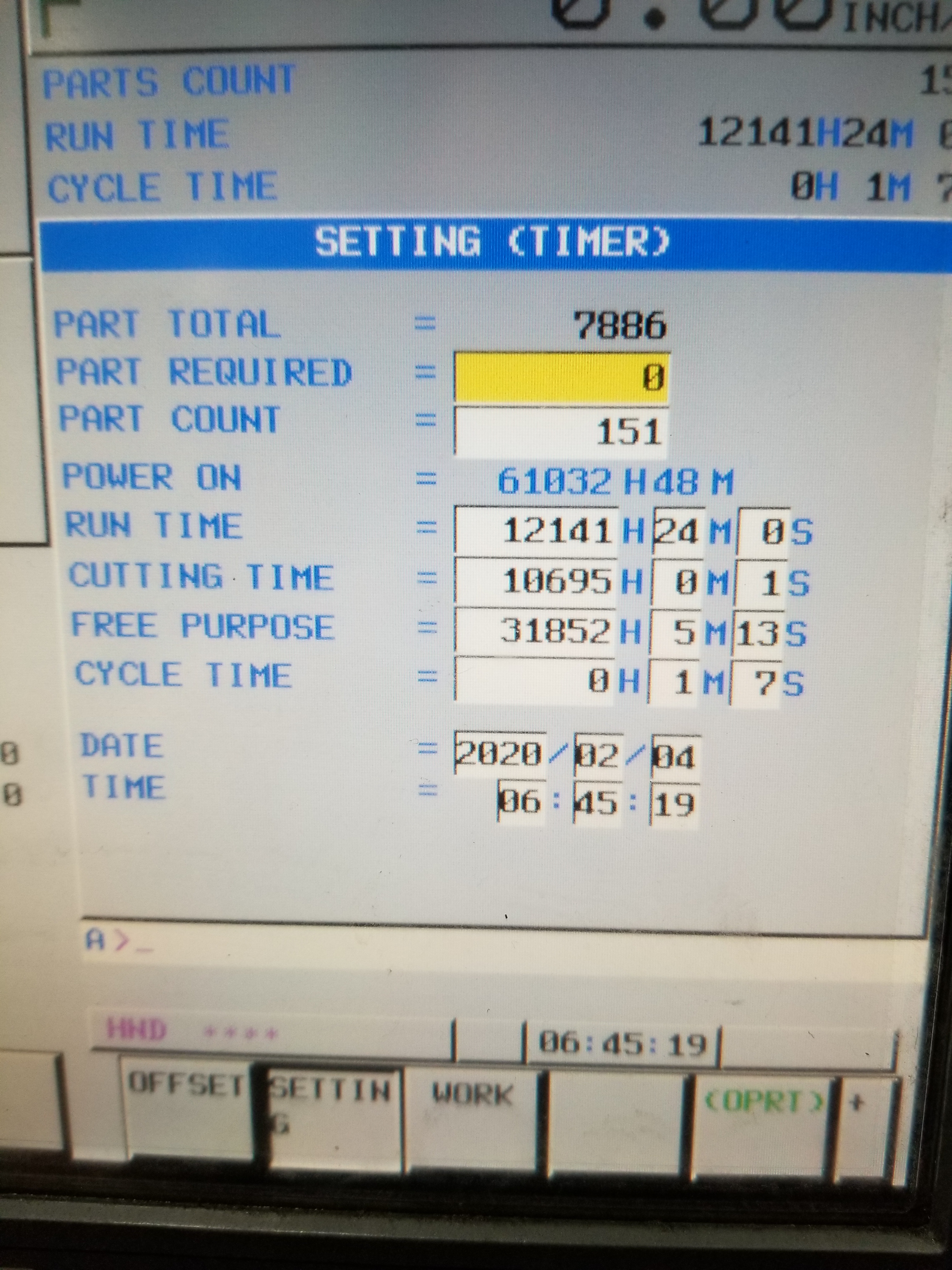

Toyoda FA-800S

machine specifications

• Pallet Dimension:

  800 x 800 mm / 31.5" x 31.5"

• Pallet index time:

  0–90° 5.0 s

• Pallet Height from Floor:

  1,300 mm / 51.18"

• Pallet Change Time:

  40.0 s

• Max Load on Pallet:

  2.500 kg / 5,511 lbs

• X-Axis Stroke:

  53.14" (Table)

• Y-Axis Stroke:

  55.11" ( Spindle Head)

• Z-Axis Stroke:

  45.27" (Column)

• Spindle Nose to Table Center:

  200-1,350 mm /7.8" - 53.1"

• Spindle Nose to Pallet Top:

  50 -1,200 mm / 1.9" - 47.24"

• Workpiece (Swing Dia x Height):

  1600 mm x 1300 mm / 62.9" x 51.18"

• Max Spindle Speed:

  6,000 min-1

• Spindle Taper (Big Plus):

  50

• Front bearing Ø (mm):

  Ø 110 mm

• X/Y/Z Ballscrew Diameter:

  63/50/63 (Ø/mm)

• Cutting Feedrate:

  1- 24,000 mm/min / 1- 944"

• Rapid Traverse Rate:

  24 m/min

• Positioning Accuracy:

  ±0.003 mm

• Repeatability:

  ±0.0015 mm

• Table Positioning Accuracy:

  ±2 WS

• Tool holding capacity Chain:

  60

• Max. tool dimensions:

  120 x 800 (Ø x length) mm

• Max. tool weight:

  35 kg
