Toyoda FH630S, FH630S, 12 Pallet RGV System 2004, 2004, 2001

machine specifications

• Pallet Size:

  24.80" x 24.80"

• Rotary Table Index Increments:

  1-Deg.

• Rapid Traverse (X/Y/Z):

  2362 IPM

• Spindle Speed:

  15,000 rpm

• Spindle Nose Taper:

  CAT50 Big+

• Max Tool Size:

  9.84" x 18.5"(Dia. x Length)

• Max Tool Weight:

  59.4 lbs

• Power:

  52 kVA

• COLUMN CROSS TRAVEL (X-AXIS):

  39.37"

• SPINDLE HEAD VERTICAL TRAVEL (Y-AXIS):

  31.50"

• WORK TABLE TRAVEL (Z-AXIS):

  33.46"

• EAST MACHINE TOOL CAPACITY:

  122 Tool Changer

• WEST MACHINE TOOL CAPACITY:

  230 Tool Matrix

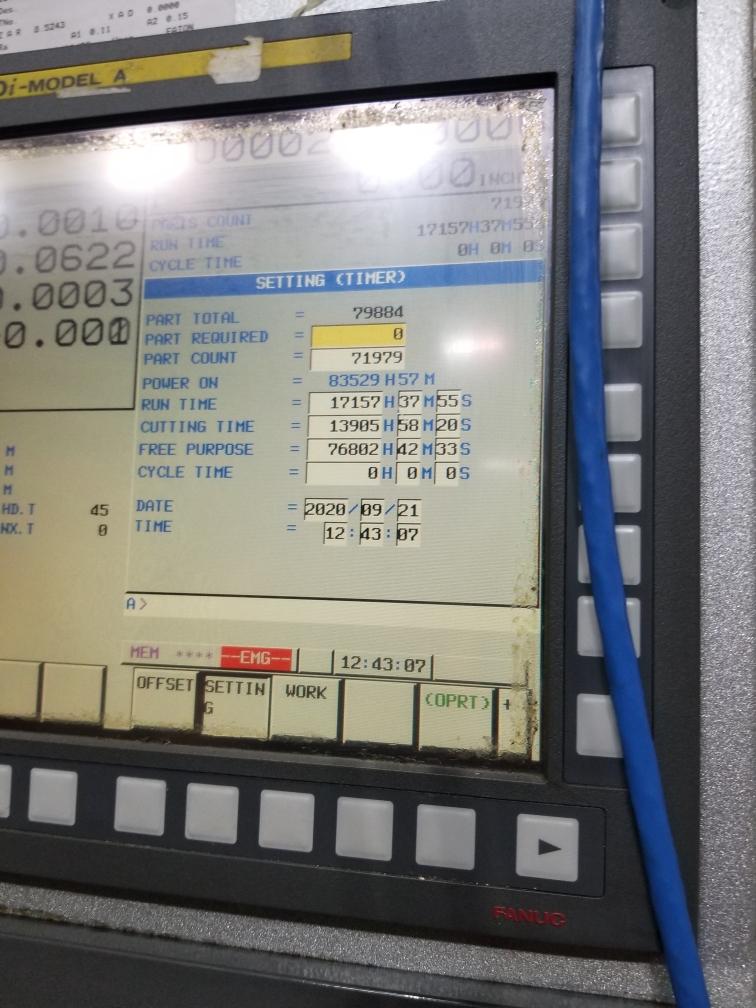

• EAST MACHINE CUTTING HOURS:

  13,905 hrs

• WEST MACHINE CUTTING HOURS:

  15,429 hrs
