Kitamura Mycenter HX1000i 2011

machine specification

• PALLET WIDTH
• 39.37"

• PALLET LENGTH
• 39.37"

• PALLET INDEXING
• FULL 4TH

• NUMBER OF PALLETS
• 2

• MAX WORK PIECE WEIGHT
• 6,600 LB

• X-AXIS TRAVEL
• 80.31"

• Y-AXIS TRAVEL
• 51.97"

• Z-AXIS TRAVEL
• 53.94"

• SPINDLE SPEED
• 8,000 RPM

• SPINDLE MOTOR
• 40 HP

• SPINDLE TAPER
• BT 50

• TOOL POSITIONS
• 150 (ATC)

• RAPID TRAVERSE RATE
• 1,417 IN/MIN.

• CUTTING FEEDRATE
• 1,417 IN/MIN.

• DIMENSIONS
• 20' x 35'

machine equipped with

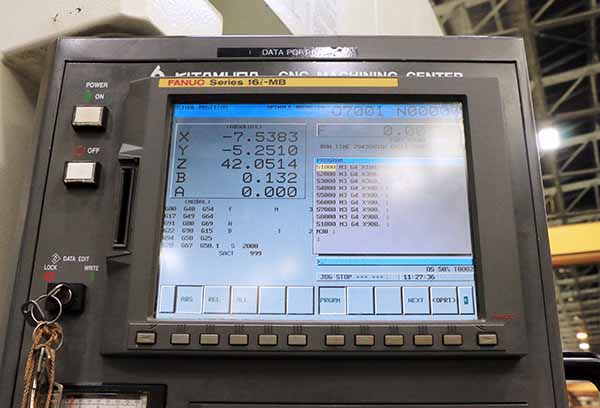

• FANUC 16I-MB CONTROL
• 897 FOOT-POUNDS OF TORQUE
• HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1000 PSI)
• COOLJET HIGH-PRESSURE COOLANT SYSTEM
• FULL 4TH AXIS PALLET CONTOURING
• 5TH AXIS DRIVE & WIRING
• RENISHAW PROBING SYSTEM (OMP 400 SPINDLE PROBE)
• 150 TOOL POSITIONS
• CHIP CONVEYOR
• GEARBOX (4-STEP GEAR DRIVEN)
• BOX WAY
• LINEAR SCALE FEEDBACK (ALL AXES)
• TWIN BALL SCREWS & TWIN SERVO MOTORS
• AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)
• TOOL RETRACT & RECOVER
• PROGRAM RESTART
• APPROX (60) BT50 TOOL HOLDERS
• (2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS

machine description

Used 2011 Kitamura Mycenter HX1000i for sale. This pre-owned Kitamura Horizontal Machining Center is located in the USA. This Horizontal Machining Center is available for a limited time, call us today for a quote. If you have any questions about our Kitamura Mycenter HX1000i listing, contact us and we will be happy to help.

** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
** REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $1,500,000
** AVAILABLE FOR IMMEDIATE INSPECTION, PURCHASE & REMOVAL
** 2010 MYCENTER HX1000i ALSO AVAILABLE IN SAME FACILITY
** TSUDAKOMA RBA-500R ROTARY TABLE, TAILSTOCK & FIXTURE BASE AVAILABLE FOR A SEPARATE OR PACKAGE PURCHASE. THIS ALLOWS FOR TABLE ON TABLE 5-AXIS
