THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: Makino

  • MODEL: A81M (2 machines) Cell

  • YEAR: 2010

  • TYPE: Horizontal Machining Center

  • CONTROL: Professional 5

  • REF #: 3635343

MACHINE SPECIFICATIONS

  • Number of Pallets:

    12

  • X-Axis Travel:

    35.4"

  • Y-Axis Travel:

    31.5"

  • Z-Axis Travel:

    40.1"

  • Pallet Size:

    24.8" x 24.8"

  • Max Workpiece:

    39.37" (Dia) x 51.18" (H)

  • Table Index:

    0.001 deg

  • Spindle Speed:

    10,000 RPM

  • ATC Capacity:

    137

  • Spindle Taper:

    CAT-50

  • Max. Pallet Weight:

    2650 lbs

  • Number of machines:

    2

MACHINE EQUIPPED WITH

  • Two identical Makino A81M machines included (2010 and 2008)
  • Makino MMC Pallet Tech with 1 loading dock

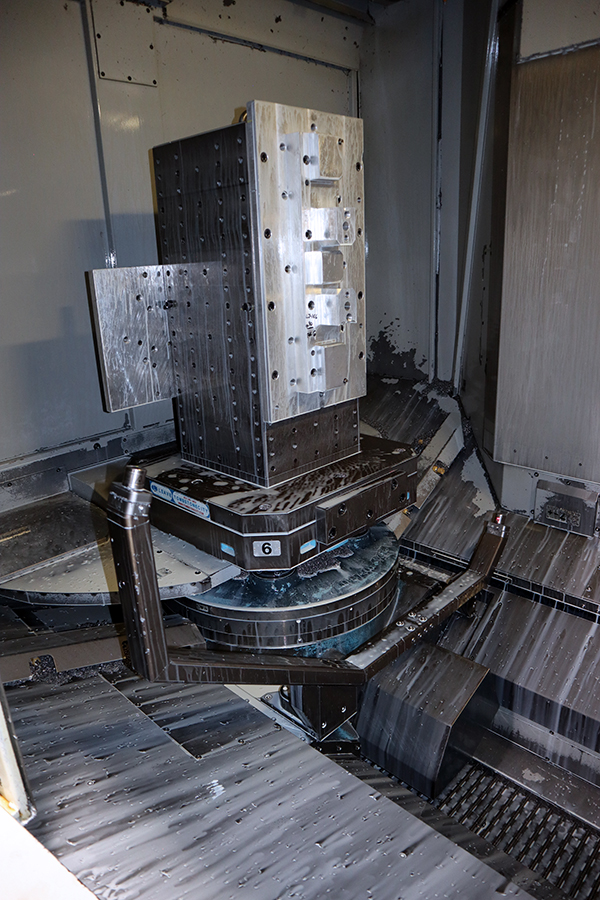

  • 12 pallets included Full 4th Axis (0.001 deg)
  • Fanuc Pro 5 Control

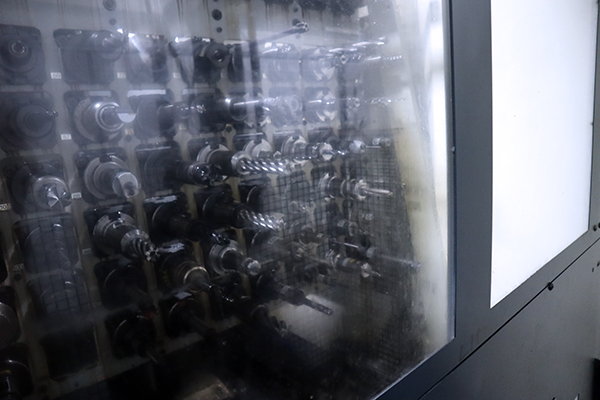

  • Renishaw Tool Presetter Upgraded 137 tool changer
  • Chip Blaster Unit
  • Coolant thru the spindle (1000 PSI)
  • Chip conveyor with coolant tank
  • Transformer
  • Handle Jog
  • No Tombstones included
