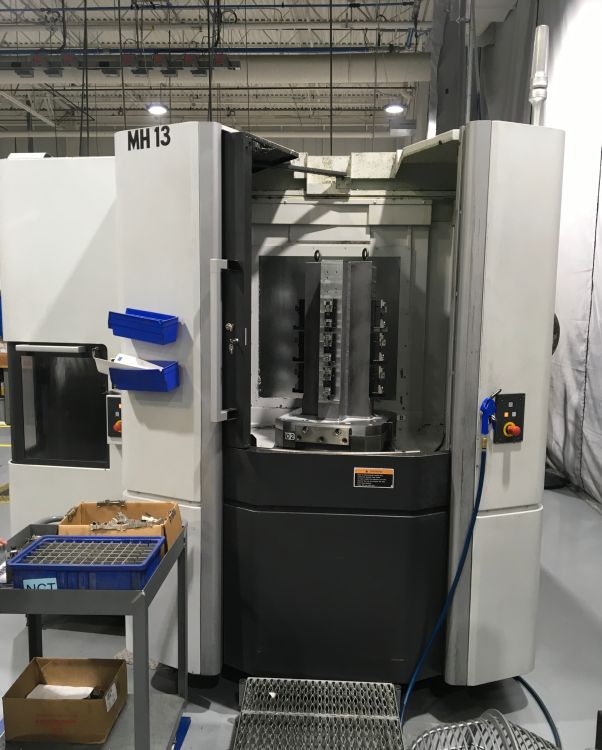

Mori Seiki NHX 5000/40 2012

MACHINE SPECIFICATIONS

• Wire Traveling Speed:

  22

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 Hp

• Spindle Taper (CAT/BT):

  HSK-463

• Pallet Size (inches):

  25"

• Tool Changer Type:

  60 ATC

• Chuck Size (Inches):

  8"

• Pallet Indexing:

  .001 Degree

• Maximum Workpiece Weight:

  1,100 Lbs

• Rapid Traverse Rate (X/Y/Z):

  2,362 Ipm

• Max Cutting Feed Rate:

  2,362 Ipm
