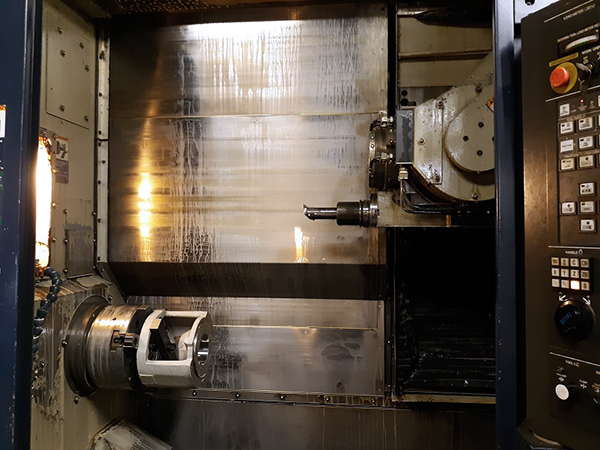

Mori Seiki Super HiCell 250 2003

machine specifications

• Bar Stock Capacity:

  2.0"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• X-Axis Travel:

  14.3"

• Y-Axis Travel:

  27.6"

• Z-Axis Travel:

  43.5"

• B Axis:

  0.001°

• C Axis Main & Sub Spindle:

  .001

• Max Turning Diameter:

  21.7"

• Max Turning Diameter with Rotating Tool:

  14.56"

• Max Tool Length:

  15.7"

• Milling Spindle Taper:

  CAT40

• Max Tool Diameter:

  2.9"

• TOOL CAPACITY:

  42 ( 2 x 20 Stations )

• Milling Motor:

  10/705 HP

• Milling Spindle Speed:

  1,000 RPM

• Sub Spindle Motor:

  10/7.5 HP

• Spindle Motor:

  50 HP

• Spindle Bore:

  3.54?

• Spindle Nose:

  A2-8

• Swing over Bed:

  20.1?

• Max Turning Length:

  41.1"

• Max Bar Capacity Main Spindle:

  2.56"

• Max Bar Capacity Sub Spindle:

  1.65"

• Rapid Traverse X & Z Axis:

  1181 IPM

• Rapid Traverse Y Axis:

  590 IPM
