Whitney Punch 635-530-42812 2004

machine specification

• PUNCHING FORCE
• 30 Tons

• MATERIAL THICKNESS
• Approx 1/2"

• POSITIONING ACCURACY
• +- .005"

• PUNCHING STROKE, NORMAL
• 1/2"

• STROKE ADJ MAXIMUM
• 2"

• STROKE ADJ., MINIMUM
• 3/8"

• DISTANCE, TOP OF DIE TO POSITIVE STRIPPER STANDARD
• ---

• W/ OUT INSERT
• 5/16"

• W/ INSERTS
• 3/16"

• MAX POSITIONING DIMENSIONS
• ---

• X-AXIS
• 72"

• Y-AXIS
• 30"

• FLOOR SPACE
• ---

• LEFT TO RIGHT WITHOUT EXTENSION GAGE
• 170.5"

• FRONT TO BACK
• 95"

• SHIPPING WEIGHT APPROX
• 12,410 lbs

• POSITIONING SPEED
• ---

• MAX. EACH AXIS
• 600"/min

• MAX. PIECE PART WEIGHT (USING OPTIONAL WORK CLAMPS)
• 170 lb

• HYDRAULIC POWER UNIT
• w/ 10 H.P. drip-proof motor

machine equipped with

• PUNCH HOLDERS

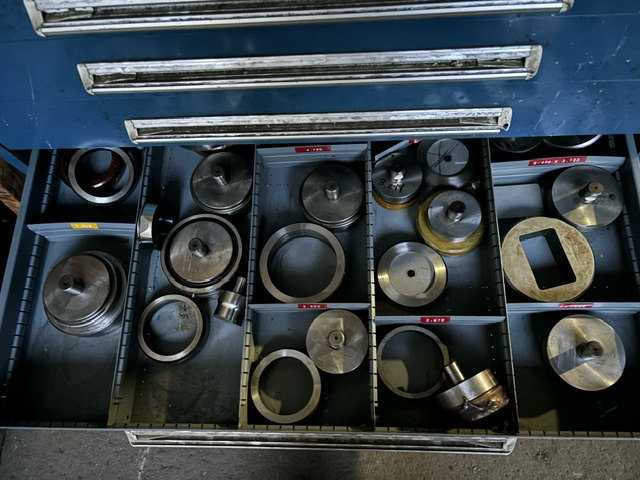

• TOOLING
• CNC GAUGING SYSTEM
• HYDRAULIC PUMP
