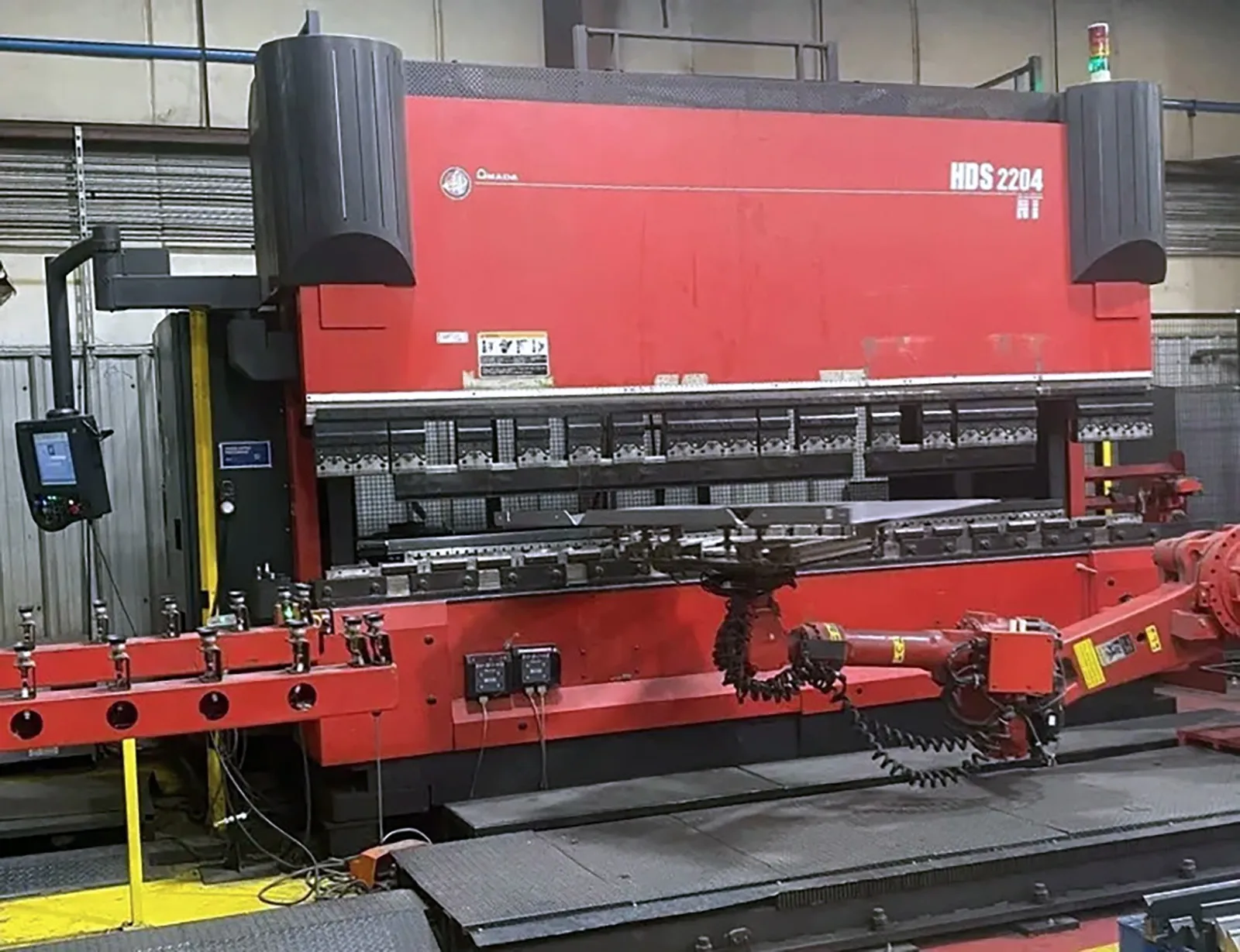

Amada HDS2204NTW 2012

machine specifications

• Tonnage:

  243 Tons

• Type:

  HYD

• Stroke:

  17.72"

• # Axis:

  8

• Capacity:

  243 Ton

• Overall Length of Bed:

  14'

• Distance Between Housings:

  148"

• Stroke.:

  9.84"

• Open Height:

  26"

• Machine Length (C):

  224.8"

• Machine Length (D):

  126.57"

• Approach Speed:

  7.87 IPS

• Bending Speed:

  0.78 IPS

• Power Requirement:

  99 Amps @ 200 Volts

• Hydraulic Oil Capacity:

  33.4 Gallons

• Astro 165W Structure (A=Travel Axis):

  Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft

• Astro 165W Lifting Capacity:

  364 Lbs

• Max. Parts Size:

  59˝ x 118˝

• Min. Parts Size:

  5.9˝ x 5.9˝

• Thickness:

  0.024˝– (0.236˝ with Special Hands)

• Power Requirement.:

  6 KVA

• Positioning Accuracy:

  ±0.0027˝ (Robot), ±0.0078˝ (Axis)

• Robot Weight:

  3,400 Lbs
