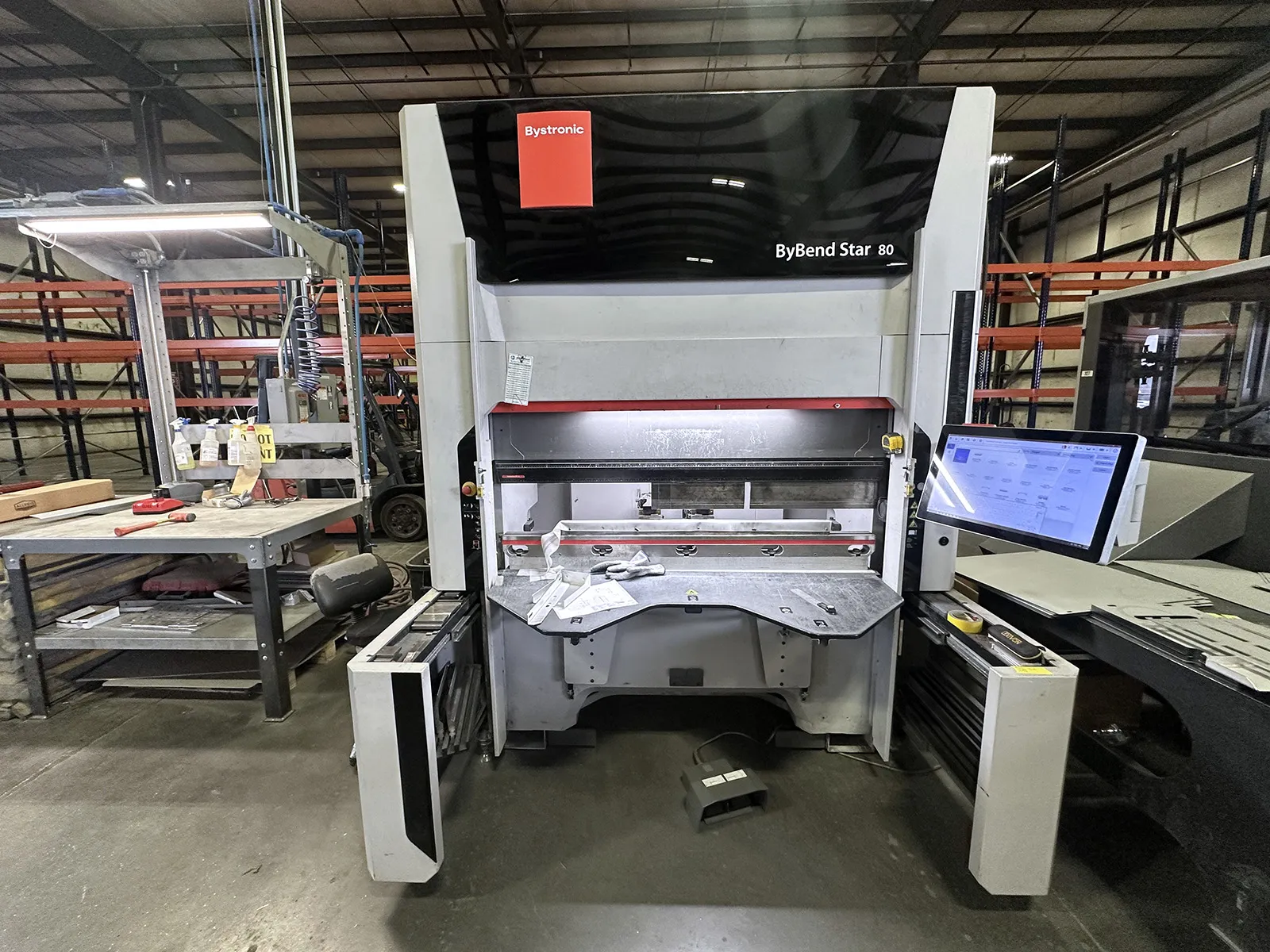

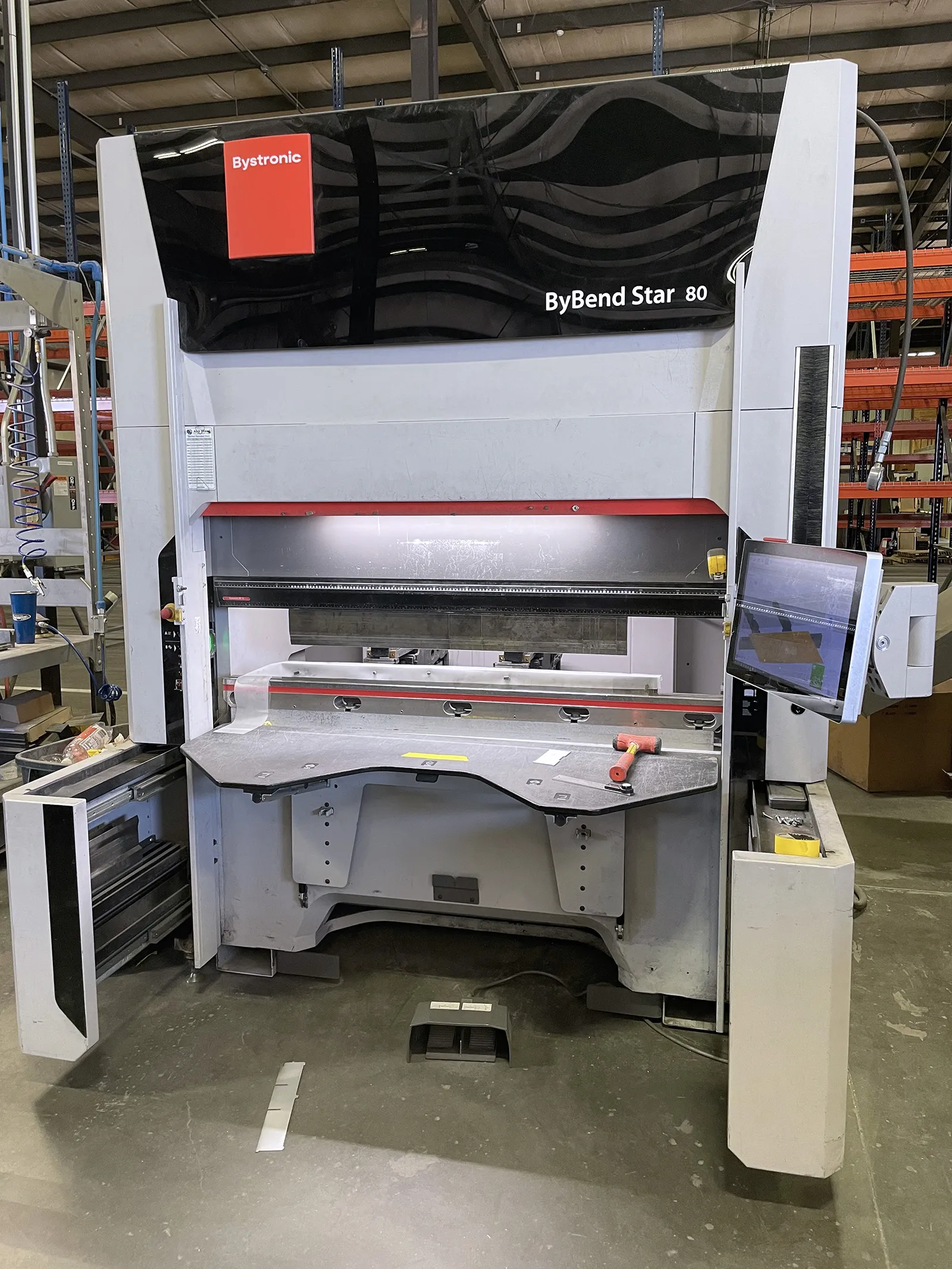

Bystronic ByBend 80/1530 2023

machine specifications

• Tonnage:

  88 Tons

• Bending Length:

  60.2"

• Standard stroke [S]:

  7.9"

• Open height [D]:

  20.3"

• Distance Between Side Frames:

  61.8"

• Table width:

  2.4"

• Max. back gauge range X-axis:

  19.7"

• X-Axis Travel:

  11.8"

• X-Axis Speed:

  3543 in/min

• R-Axis Travel :

  3.9"

• R-Axis Speed:

  1181 in/min

• Z-Axis Travel:

  57.3"

• Z-Axis Speed:

  4724 in/min

• Max. Y-approach speed:

  591 in/min

• Max. Y-working speed:

  59 in/min

• Y-position accuracy:

  0.00016"

• Oil Capacity:

  53 gal

• Main Motor Power:

  15 kW

• Weight:

  14,330 lbs

• Dimensions:

  80" x 70" x 102" (L x W x H)
