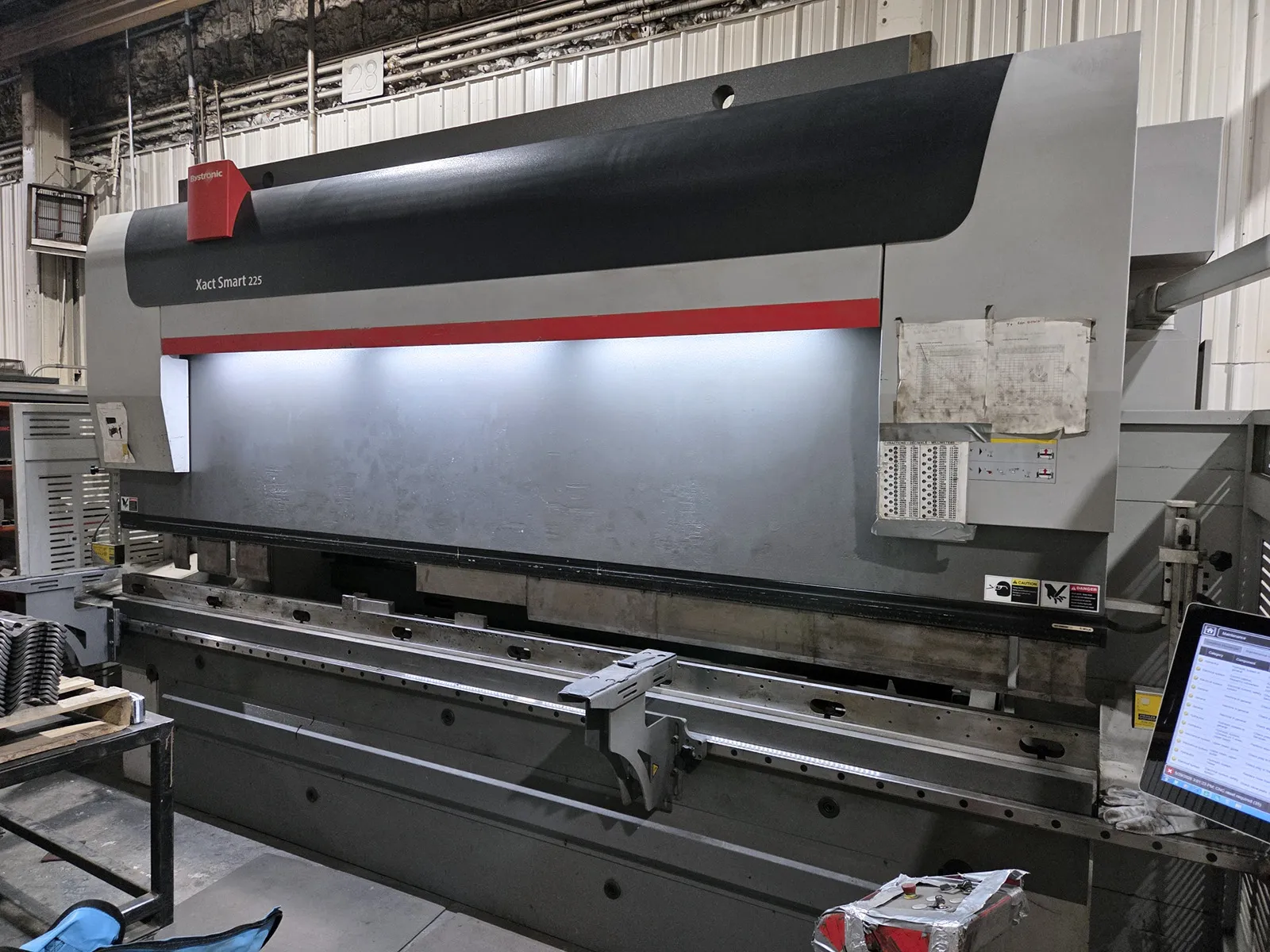

Bystronic Xact Smart 225 2016

machine specifications

• Tonnage:

  248

• Bending Length:

  157.5"

• Stroke:

  7.9"

• Open Height:

  18.4"

• Distance b/w side frames:

  134.7"

• Throat:

  15.8"

• Table width:

  2.37"

• Max. back gauge range X-axis:

  36.5"

• X-Axis Travel:

  23.7"

• X-Axis Speed:

  945 in/min

• X-axis position accuracy:

  +/- 0.0019"

• R-Axis Travel :

  6"

• R-Axis Speed:

  237 in/min

• R-axis position accuracy:

  +/- 0.004"

• Z-Axis Travel:

  113.39"

• Z-Axis Speed:

  945 in/min

• Max. Y-approach speed:

  331 in/min

• Max. Y-working speed:

  23.6"

• Weight:

  ~33,000 lbs

• Dimensions:

  198" x 108.3" x 110.3" (LxWxH
