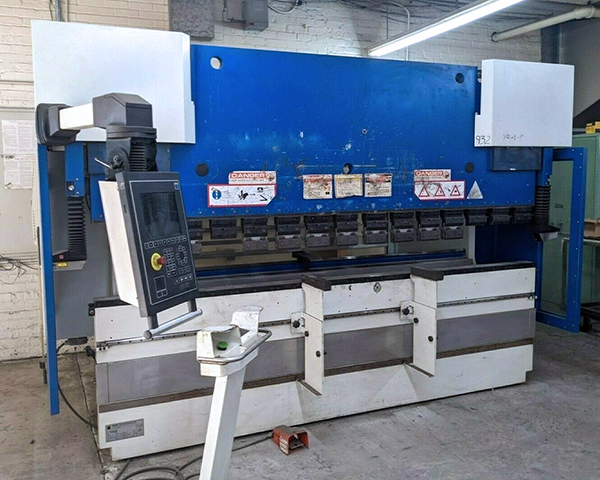

Trumpf TruBend 3120 2008

machine specifications

• Bending Length:

  122”

• Oil Capacity:

  53 Gal

• Connected Load:

  23 KvA

• Travel Path R axis:

  13”

• Max gauge Area in X:

  35”

• Travel Path X axis:

  24”

• Y-Axis Stroke:

  8”

• X Axis Position Accuracy:

  0.0002”

• Y Axis Position Accuracy:

  0.0004”

• Z-axis:

  2362 IPM

• X-axis:

  1181 IPM

• Y return traverse speed:

  425 IPM

• Y working:

  24-42 IPM

• Y-Rapid:

  472 IPM

• Inclination of beam:

  0.12”

• Operating Height:

  39”

• Throat:

  16.5”

• Usable Installation Height:

  14”

• Width Between Columns:

  106”

• Press Force:

  120 Tons

• Maximum table/beam distance:

  17"

• R Axis:

  590 IPM

• R Axis Position accuracy:

  0.004”
