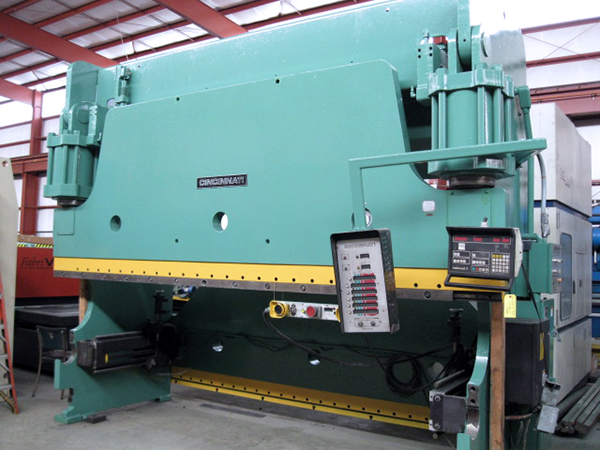

Cincinnati 350 FM12 1982

machine specification

• THROAT DEPTH
• 9.45"

• OPEN HEIGHT
• 20"

• SPINDLE MOTOR (HP)
• 35 HP

• TURRET CAPACITY
• 8 Positions

• TOOL CHANGER TYPE
• 60 ATC

• TABLE SIZE - W
• 30"

• TABLE SIZE - L
• 61"

• PALLET SIZE (INCHES)
• 25"

• BAR STOCK CAPACITY
• 2.0"

• MAX SWING (INCHES)
• 17.32"

• SPINDLE SPEED
• 12,000 RPM

• SPINDLE TAPER (CAT/BT)
• HSK-463

• Z - AXIS TRAVEL (INCHES)
• 14.7" / 375mm

• Y - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• X - AXIS TRAVEL (INCHES)
• 15.7" / 400mm

• CHUCK SIZE (INCHES)
• 8"

• OVERALL LENGTH OF BED AND RAM
• 168" (14' 0")

• DISTANCE BETWEEN HOUSINGS
• 150" (12' 6")

• STROKE LENGTH
• 12"

• CLOSED HEIGHT
• 8"

• HIGH SPEED
• 208" / Min

• MEDIUM SPEED
• 54" / Min

• LOW SPEED
• 14"/Min

• HIGH RETURN
• 211"/ Min

• LOW RETURN
• 56"/ Min

• DEPTH OF SLOT REQUIRED IN FLOOR
• 22"

machine equipped with

• HURCO AUTOBEND 6 CNC BACK GAUGE
• (6) 24" AND (1) 12" SECTIONAL DIE CLAMP
• LOWER DIE RAIL
• ADJUSTABLE STROKE CONTROL
• LEVELLING GAUGE
• DUAL PALM BUTTON OR ELECTRIC FOOT SWITCH OPERATION
• CINCINNATI FORM MASTER CONTROLS FOR: SPEED SELECT
• STROKE CONTROL
• TONNAGE CONTROL
• MAINTENANCE AND SAFETY MANUAL
