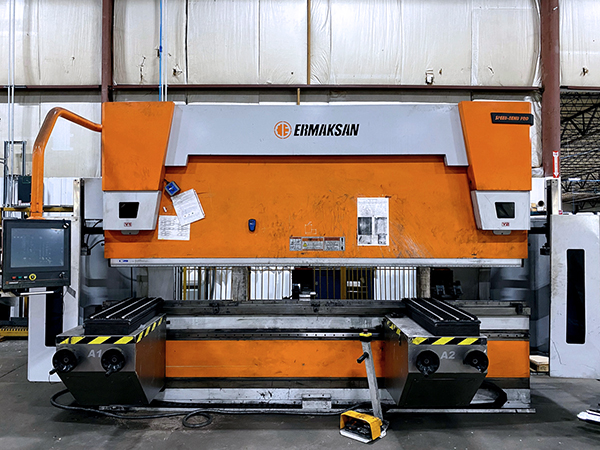

ERMAKSAN Speed-Bend Pro 3760-220 2017

machine specification

• BENDING CAPACITY
• 242 Tons

• OVERALL LENGTH OF BED & RAM
• 12’4” 148”

• DISTANCE BETWEEN HOUSINGS
• 10’8” 128”

• Y RAPID SPEED
• 7.09”

• Y WORKING SPEED
• .39

• Y RETURN SPEED
• 7.28”

• CROWNING
• Motorized

• X-AXIS TRAVEL
• 31.50"

• X-AXIS SPEED
• 19.69”

• TRAVEL R AXIS
• 9.84

• SPEED R AXIS
• 13.78

• BACK GAUGE
• 6 Axis

• BACKGUAGE FINGER BLOCKS
• 2

• NUMBER OF SHEET SUPPORTS
• 2

• TABLE HEIGHT
• 35.43”

• DAYLIGHT
• 21.65”

• STROKE
• 10.83"

• MOTOR POWER
• 20 HP

• TABLE WIDTH
• 9.45”

machine equipped with

• ATF0 6-AXIS BACKGAUGE W/ 39.4” RANGE
• DELEM ER90 PLUS-3D CNC CONTROL
• MOTORIZED FRONT SHEET SUPPORTS
• WILSON HYDRAULIC RAM CLAMPING SYSTEM W/ AMERICAN EXPRESS RAIL
• CNC MOTORIZED WEDGE CROWNING
• ANTI-DEFLECTION
• LAZERSAFE PCSS-AO RAM MOUNTED LASER SAFETY GUARDING
• MECHANICAL REAR GUARDING W/ INTERLOCK SWITCH
• DUAL RAM FEEDBACK
• ADJUSTABLE BENDING SPEED CONTROL
• FOOT PEDAL
• ALL TOOLING PICTURED
