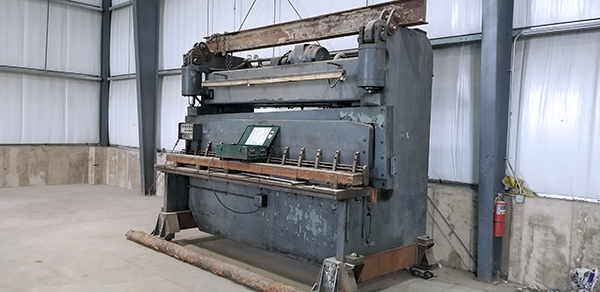

Cincinnati 4S12 1980

machine specification

• CAPACITY
• 12 ft x 1/2" mild steel

• OVERALL LENGTH OF KNIVES
• 12ft 3"

• DISTANCE BETWEEN HOUSINGS
• 147"

• RAKE ANGLE
• 7/16"

• NUMBER OF HOLDDOWNS
• 15

• HOLD DOWN TONNAGE
• 26-1/2 tons

• DISTANCE FLOOR TO TOP OF BED
• 32"

• SPEEDS
• 360"/minute up 113"/minute full load down

• SPM
• 11-30

• GAP DEPTH (THROAT)
• 16"

machine equipped with

• 36" FRONT OPERATED POWER BACK GAUGE
• WITH PUSHBUTTONS FOR
• FINE ADJUSTMENT FORWARD -RAPID TRAVERSE FORWARD-BACKWARDS & READOUT
• 10' SQUARING ARM
• ELECTRIC FOOT SWITCH
• PUSHBUTTONS FOR START - STOP
• KEY SELECTOR SWITCH FOR INCH - SINGLE STROKE - OFF - CONTINUOUS
• BLADE CLEARANCE ADJUSTMENT
• STROKE LENGTH ADJUSTMENT
• AUTOMATIC OIL LUBRICATION
• (5) DOVETAIL SLOTS IN TOP OF BED
• DOVETAIL SLOT IN FRONT OF BED
• TRANSFER BALLS IN TOP OF BED
• REAR PARTS CHUTE
• HYDRAULIC PUMP
• DRIVEN BY 40 HP 1780 RPM 230/460/3/60 MOTOR
