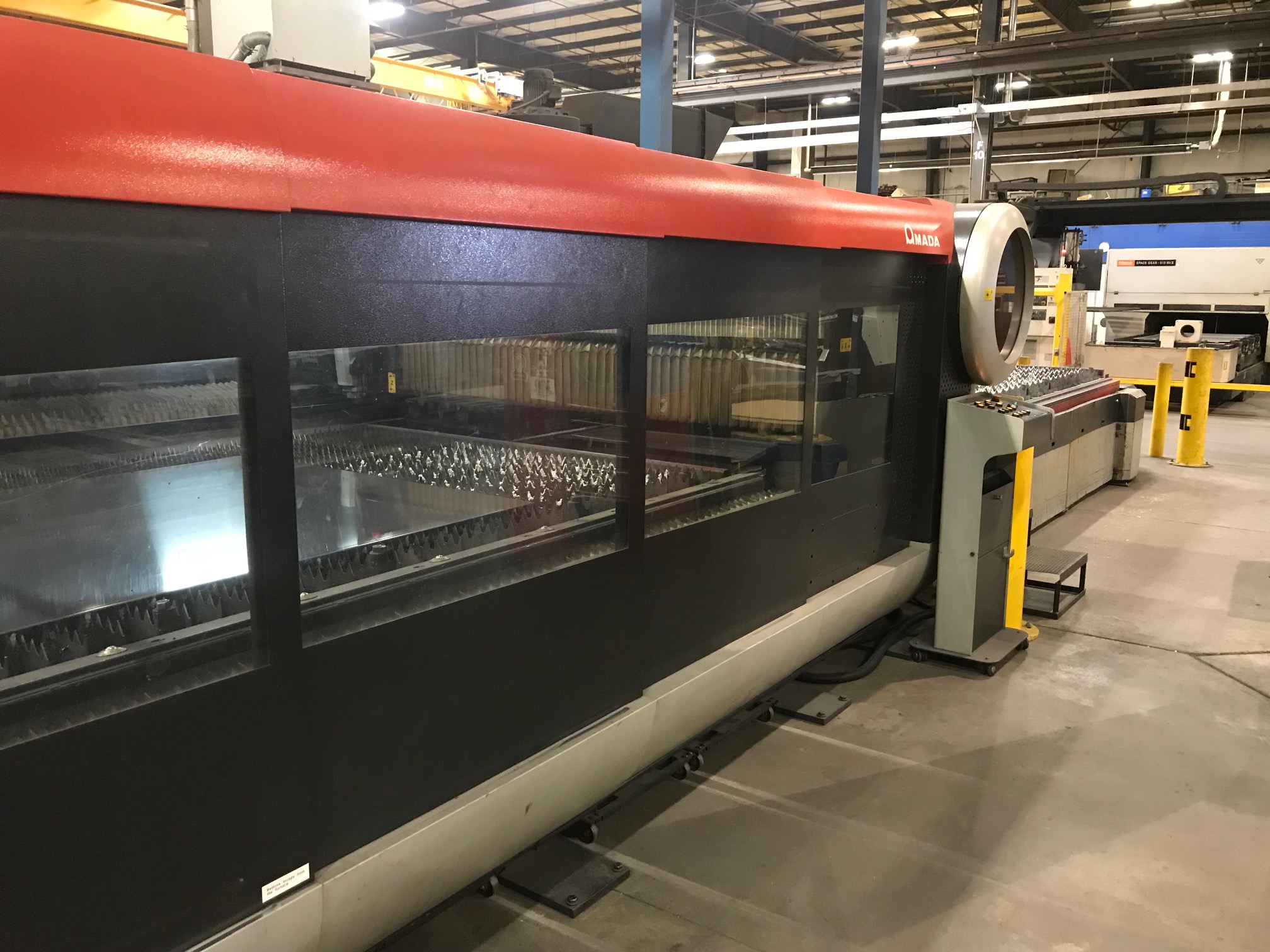

Amada LC4020 F1 NT 2009

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Travel Method:

  Stationary Table, Flying Optic

• Control Method:

  X, Y and Z simultaneous 3 axis control

• Drive Motors:

  Fanuc AC Servo Motors

• Maximum Sheet Size:

  80" (Y) x 160" (X)

• Maximum Axis Travel:

  81" (Y) x 168" (X) x 3.94" (Z)

• Maximum Axis Positioning Speed:

  4,724"/min (6,681"/min 45° vector)

• Maximum Speed Z-Axis:

  4,724 inches per minute

• Positioning Accuracy:

  0.0004" for the entire table

• Acceleration:

  X, Y: 1.5G Z: 3G

• Cutting Head:

  Cartridge-type

• Z-Axis Sensor:

  HS-2007 (Anti-plasma, noise resistant)

• Maximum Material Weight:

  2,000 lbs.

• Assist Gas:

  Automatic 4 ports with NC pressure Control

• Machine Weight:

  28,660 lbs. (including oscillator)

• Electrical Requirements:

  208V, 3 Phase, 60Hz

• Laser Power:

  6000 watts

• CNC Controller:

  Fanuc NT

• Display:

  LCD Color Graphics Display

• Minimum Command Unit:

  0.0001" (X, Y, Z)

• Minimum Travel Unit:

  0.0001" (X, Y, Z)

• Standard Memory:

  2 MB

• Operating Modes:

  Automatic, MDI and Manual

• Control Model:

  Fanuc NT

• Minimum Command Unit:

  0.001" (X, Y, Z)

• Minimum Travel Unit:

  0.001" (X, Y, Z)

• Standard Memory:

  2MB (5120m)
