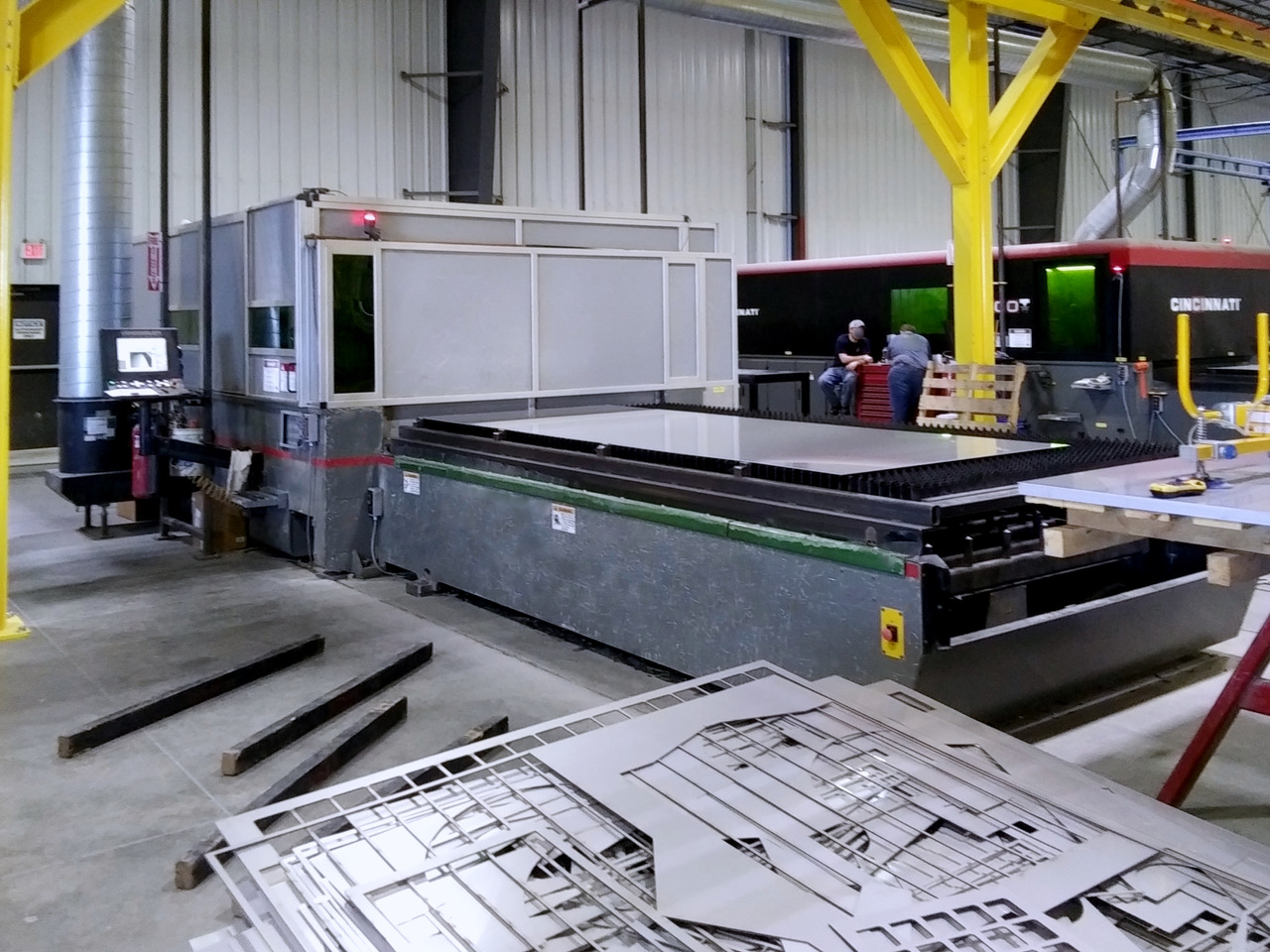

Cincinnati CL-940 Fiber 2012

machine specifications

• Control:

  Meldas 500 Series

• Power Output:

  4000 Watt

• Type:

  Fiber

• Table Size:

  L 60" x W 120”

• X-Axis Travel:

  14.3"

• Y-Axis Travel:

  27.6"

• Z-Axis Travel:

  43.5"

• Rapid Traverse Jog (X And Y Axis):

  1200 Ipm

• Rapid Traverse Jog (Z Axis):

  1700 Ipm

• Positioning speed:

  12,000 Ipm

• Polarization:

  Random

• Microprocessor:

  Multi-Processor

• Pulse Frequency:

  8 - 5000 Hz

• Lens Focal Length:

  7.5"

• Beam Quality:

  50 Micron Feeding Fiber

• Modes Of Operation:

  Continuous Wave, Quasi-Continuous Wave

• Nozzle Cooling Purge:

  Compressed Air Filter/Dryer

• Compressed air supply:

  480 Scfm @ 80 To 140 Psig

• Absolute Positioning X & Y Axis:

  +/- 0.001"

• Rapid Traverse (Z Axis):

  1,700 Ipm

• Repeatability X & Y Axis:

  .001"

• Normal Jog (X And Y Axis):

  300 IPM

• Rapid Traverse (X/Y):

  Simultaneous 12,020 IPM

• Accelerations X And Y Axis:

  1.65 G

• Accelerations Z-Axis:

  2.00 G

• Cutting Capacities - Oxygen:

  10 Ga. To 1/2"

• Cutting Capacities - Nitrogen:

  20 Ga. To 1/4"

• Assist Gas Pressure Adjustment:

  5 - 400 PSI

• Voltage:

  460v ~ 3 Phase
