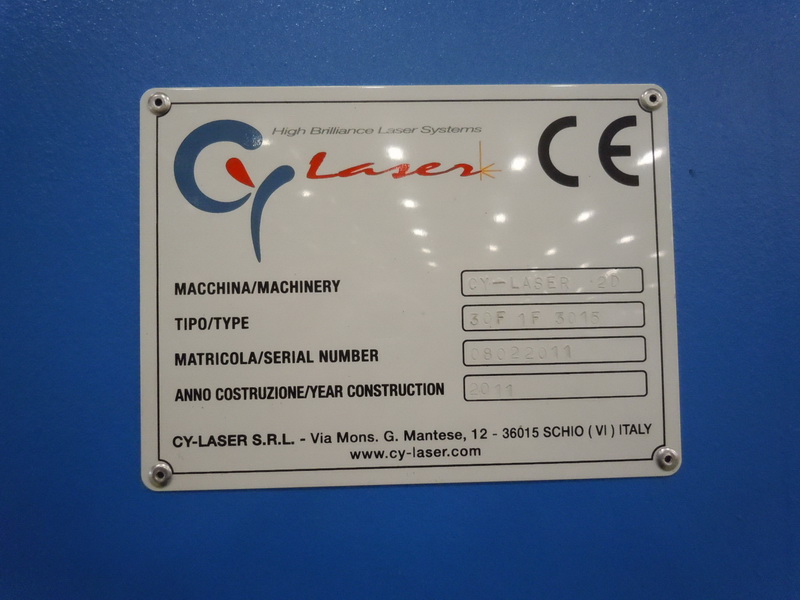

CY 2D 3015 2011

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Table Size - L:

  61"

• Table Size - W:

  30"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Number of Tables:

  2

• Type of Resonator:

  Fiber

• Type of cnc control:

  PC Based

• Positioning System Design:

  Flying Optic

• Cutting feed rates range:

  6 -1200 IPM

• Rapid travel:

  4300 + 4300 IPM

• Accuracy of positioning:

  ± 0.001 inches

• Carbon Steel:

  0.700”

• Stainless Steel:

  0.320”

• Aluminum:

  0.400”

• Power Requirement:

  480 Volts / 38 Amps
