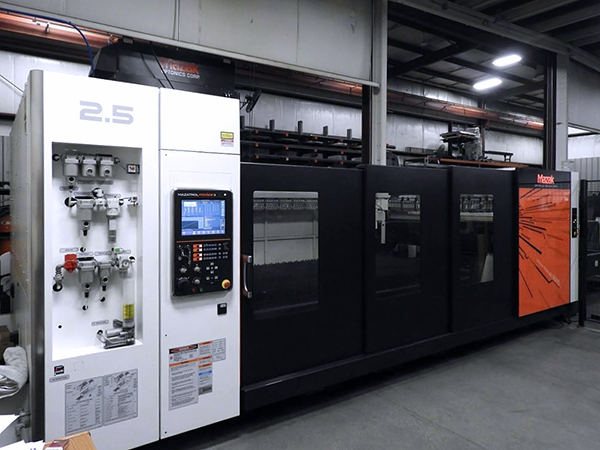

Mazak Optiplex Nexus 3015 2016

machine specifications

• Rapid Travel Speed (X,Y):

  2,362 IPM

• Program input system:

  EIA/ISO

• Minimum Command Unit:

  0.0001"

• Position detection system:

  encoder

• Memory Capacity:

  16 GB

• Display screen:

  Touch Panel

• CPU:

  64 bit

• Control:

  MAZATROL Preview 3

• Total Electrical Requirement:

  51 kVA

• Max Processing Feedrate X, Y axis:

  2,362 IPM

• Repeatable Accuracy:

  X, Y axis 0.001"

• Z axis:

  0.0004 in/3.94"

• Positioning Accuracy X, Y Axis:

  0.002 "/19.69"

• Machine Structure:

  Flying Optics

• Number of Control Axis:

  3

• Z-axis:

  Belt Drive

• Motion Drive System Design:

  Rack and Pinion Drive (X, Y axis)

• Max Thickness Aluminium:

  0.250"

• Max Thickness Stainless Steel:

  0.375"

• Max Thickness Mild Steel:

  0.750"

• Work Table Height:

  35.43"

• Z-Axis Travel:

  5.91"

• Y-Axis Travel:

  62.2"

• X-Axis Travel:

  122.05"

• Power:

  2.5 KW (CO2)
